Have you ever wondered how multi-material products are made in a single step? 2K Injection Molding combines two materials into one part, creating durable and ergonomic components efficiently. In this article, you will learn about its process, key advantages, practical applications, and considerations for modern manufacturing.
The core of 2K injection molding lies in its sequential dual-material process, which integrates two polymers into a single, cohesive part. Initially, a rigid or structural substrate—often made of ABS, PC, or PP—is injected into the first mold cavity, forming the base of the component. Once the substrate solidifies, it is automatically repositioned, either by robotic arms or a rotary mechanism, into the second mold station. Here, a secondary material—typically a soft-touch elastomer like TPE or a differently colored polymer—is injected over or around the substrate. This step ensures chemical and mechanical bonding, creating a unified, multi-functional part.
The automation in this cycle allows for continuous production without manual handling between shots, which significantly reduces the risk of contamination and ensures consistent alignment. Key benefits of this two-stage approach include minimized assembly steps, superior repeatability, and the ability to produce complex geometries such as overmolded handles or integrated seals in a single production run.
A critical factor in achieving a successful 2K molded part is selecting material pairs with compatible thermal, chemical, and mechanical properties. Rigid polymers like ABS, PC, or PBT are commonly paired with flexible elastomers such as TPE, TPU, or liquid silicone (LSR). The primary goal is to achieve strong adhesion between layers while maintaining each material’s functional characteristics.
Key considerations include:
● Thermal Compatibility: Melting points must be compatible to prevent substrate deformation during the second shot.
● Chemical Affinity: Polymers with similar chemical structures enhance bonding at the interface.
● Mechanical Interlocks: For incompatible pairs, undercuts or interlocking features can improve adhesion without chemical bonding.
● Surface Preparation: Substrate texturing or plasma treatment can further increase the bond strength and reduce defects.
Material Pair | Typical Applications | Notes |
PP + TPE-S | Automotive knobs, seals | Excellent flexibility range, cost-effective |
ABS + TPE-S | Consumer electronics, tool handles | Strong adhesion, soft-touch surfaces |
PC + TPE-U | Medical devices, electronics housings | High impact resistance, thermal stability |
PA + TPE-A | Automotive engine components | High chemical resistance, robust under high temperature |

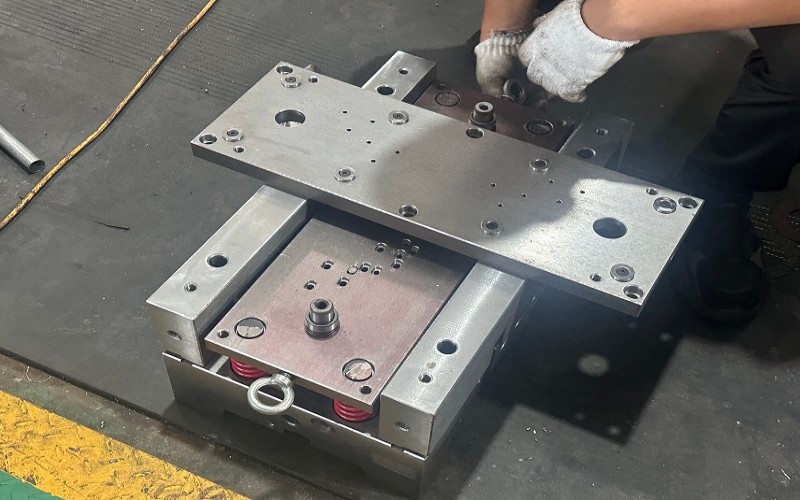

Mold configuration plays a pivotal role in 2K injection molding. The most common mold systems include rotary molds, transfer (sliding) molds, and index plate molds, each suited for specific geometries and production scales. Rotary molds rotate the first material into position for the second injection, allowing simultaneous multi-cavity production and short cycle times. Transfer molds rely on linear motion to move the pre-mold, suitable for asymmetric or larger parts, while index plate molds offer precision positioning for 3K or 4K systems, enabling complex multi-component integration.
Additional design considerations include:
● Cooling Channels: Strategically placed to maintain uniform solidification and minimize warpage.
● Precision Alignment: Critical for perfect registration of overmold onto substrate.
● Rotational or Linear Mechanisms: Must ensure smooth transfer without damaging the pre-mold.
● Cavity Symmetry: Especially important for rotary systems to maintain repeatable quality across all shots.
One of the primary reasons manufacturers adopt 2K injection molding is its unmatched design versatility. By combining two materials in a single molding process, designers can integrate soft-touch surfaces on rigid structural components, producing ergonomic grips for tools, medical instruments, and consumer products. Multi-color designs are also achievable, enabling branding, logos, or functional color coding without post-processing.
This flexibility allows the creation of complex geometries such as layered buttons, overmolded seals, and contoured handles. In addition, 2K molding supports multi-durometer designs, where different hardness levels are applied to different sections of the same part, enhancing comfort, functionality, and user safety.
2K molding streamlines production by eliminating the need for secondary assembly. Traditional multi-part designs require separate injection cycles, manual assembly, or bonding processes, which add labor costs, time, and potential for defects. With 2K technology, both materials are injected and bonded in a single automated cycle, allowing faster production runs and higher output per machine.
Additional efficiency gains include:
● Reduced labor requirements due to automation
● Fewer quality control steps since parts are integrated at the machine
● Minimized handling errors or misalignment between components
Efficiency Metric | 2K Injection Molding | Traditional Multi-Part Production |
Cycle Time | Single cycle 25–60 s | Multiple cycles + assembly |
Labor Cost | Low | Higher, multiple operators |
Defect Rate | Reduced | Higher due to manual assembly |
Parts produced via 2K injection molding exhibit enhanced structural integrity. The permanent chemical or mechanical bond between substrate and overmold ensures strong adhesion, eliminating issues such as separation or peeling seen in manually assembled components. Integrated features, such as seals or bumpers, further improve wear resistance and functional reliability.
The process achieves tight tolerances (often ±0.01 mm), resulting in consistently precise parts suitable for automotive interiors, medical tools, and consumer electronics. The uniform material distribution and controlled molding environment reduce internal stresses and warping, which enhances product longevity even under repeated mechanical or thermal stresses.
Single-cycle integration reduces material waste by consolidating two components into one process, eliminating scraps from assembly operations. Recycled or regrind materials can sometimes be incorporated into the substrate core without affecting overmold quality.
Key sustainability benefits include:
● Lower energy consumption due to fewer production steps
● Reduced secondary finishing and post-processing requirements
● Minimized use of adhesives or fasteners that generate additional waste
2K injection molding has become a cornerstone in automotive interior manufacturing, where durability, aesthetics, and ergonomics are paramount. Soft-touch knobs, buttons, and gear shift covers are commonly produced by co-molding a rigid polymer substrate with a flexible elastomer overmold, delivering enhanced grip and tactile feedback. Integrated seals and gaskets for door panels, headlight enclosures, and electronic housings eliminate the need for separate components, improving assembly efficiency while providing reliable weatherproofing.
In the medical sector, precision and hygiene are critical. 2K molding enables the production of surgical instrument handles, diagnostic device housings, and other tools with integrated ergonomic grips and soft-touch surfaces. By combining a hard structural material with biocompatible elastomers such as TPE or LSR, devices maintain sterilization compatibility, withstand repeated autoclaving, and minimize contamination risks.
Consumer electronics benefit from 2K molding in producing rugged, waterproof, and ergonomic housings. Examples include wearable devices, smartphone protective cases, remote controls, and small appliance knobs. The process allows integration of soft-touch areas, tactile buttons, and vibration-dampening sections into rigid structural shells.
Industry | Typical 2K Parts | Benefits |
Consumer Electronics | Smartwatch bands, remote controls, camera grips | Ergonomic, waterproof, visual appeal |
Commodity Appliances | Drill handles, vacuum buttons, blender knobs | Anti-slip, durable, multi-color finishes |
2K molding finds applications in industrial and specialty products. Ergonomic handles for power tools, sports equipment grips, and cosmetic packaging leverage the ability to combine rigid and soft materials into a single piece. Precision sealing components, valves, and gaskets benefit from tight tolerances and durable adhesion, supporting harsh industrial environments.
Selecting the right material combination is one of the most important factors in successful 2K Injection Molding. The first material, usually called the substrate, provides the main structure of the part. The second material, often called the overmold, adds functions such as grip, sealing, cushioning, color contrast, or surface protection. If these two materials are not compatible, the final part may suffer from weak bonding, peeling, warping, or unstable performance during use.
Thermal compatibility should be checked early in the design stage. The substrate must remain stable when the second material is injected. If the second material requires too much heat, it may soften or deform the first shot. Chemical compatibility is also essential because some material pairs naturally bond better than others. For example, rigid plastics and flexible elastomers must be carefully matched to achieve strong adhesion.
When chemical bonding is not enough, mechanical design can improve connection strength. Undercuts, grooves, ribs, holes, and interlocking structures can help the overmold grip the substrate more securely. Processing conditions also matter. Proper melt temperature, mold temperature, holding pressure, cooling time, and injection speed all affect the final bond quality and dimensional accuracy.
Although 2K Injection Molding offers strong design and production advantages, it also requires tighter process control than standard single-material injection molding. One common issue is layer shift, where the second material does not align perfectly with the first molded part. This can happen because of inaccurate mold rotation, unstable substrate transfer, poor positioning, or worn mold components.
Flash is another common defect. It usually appears when the second material escapes from the parting line or around the bonding area. Excessive injection pressure, insufficient clamping force, damaged mold edges, or poor sealing design can all cause flash. Uneven cooling can also create problems such as warpage, sink marks, internal stress, or inconsistent bonding strength.
To reduce these risks, mold design should include accurate positioning systems, balanced cooling channels, and stable material flow paths. Robotic handling can improve repeatability when transferring the first molded part to the second station. Process monitoring is also valuable because operators can track pressure, temperature, cycle time, and mold movement in real time. With stable control, manufacturers can improve repeatability and reduce waste during continuous production.
For high-volume manufacturing, long-term stability is just as important as part design. A successful 2K Injection Molding project depends on reliable equipment, consistent material feeding, accurate mold movement, and repeatable cycle timing. Even small changes in temperature, pressure, or positioning can affect adhesion and part quality when two materials are molded together.
Regular machine maintenance helps prevent unexpected downtime. Injection units should be checked for wear, contamination, and material buildup. Rotary plates, transfer systems, guide pins, and servo drives require routine inspection and calibration to maintain accurate alignment between the first and second shots. Cooling systems should also be cleaned and monitored to ensure stable mold temperature during long production runs.
Cycle optimization is another key consideration. If the cycle is too fast, the substrate may not be stable enough for the second injection. If it is too slow, production efficiency decreases and the substrate surface may cool too much, weakening adhesion. A balanced cycle supports both quality and productivity.
In automotive, medical, consumer electronics, and industrial applications, consistent production quality is essential. Strong maintenance routines, trained operators, optimized molding parameters, and reliable inspection systems help ensure that each multi-material part meets dimensional, functional, and visual requirements.
The future of 2K injection molding is moving toward automation, digital monitoring, and smarter process control. Sensors can track mold temperature, injection pressure, material flow, cycle time, and part positioning in real time. This helps detect issues such as poor adhesion, flash, layer shift, or uneven cooling before they affect product quality.
Robotic handling also improves repeatability by transferring substrates between mold stations accurately and cleanly. With AI-driven monitoring, manufacturers can adjust parameters, predict maintenance needs, reduce downtime, and keep multi-material production more stable.
Sustainability is becoming a key direction in 2K molding. Manufacturers are exploring recycled cores, regrind materials, bio-based polymers, and environmentally friendly elastomers to reduce waste while maintaining performance.
Multi-layer designs also give engineers more freedom. One part can combine strength, flexibility, sealing, impact resistance, and color without extra adhesives, screws, or assembly steps. This supports lighter products, simpler supply chains, and lower material consumption.
The use of 2K injection molding continues to grow as products become smaller, lighter, and more functional. Automotive parts benefit from soft-touch surfaces, sealed housings, and vibration-dampening features. Medical devices use 2K molding for ergonomic handles, sealed housings, and biocompatible components.
Consumer electronics rely on it for waterproof casings, wearable devices, protective shells, and tactile buttons. Industrial products also benefit from non-slip handles, precision seals, and impact-resistant covers. As design requirements increase, 2K molding will remain valuable for producing durable, clean, and functional multi-material parts.
2K Injection Molding offers versatile, efficient production of high-quality, multi-material parts, and Taizhou Huangyan Guangchao Mould Co., Ltd. provides innovative solutions that enhance product design, functionality, and manufacturing efficiency.
A: 2K Injection Molding is a process that combines two materials in a single mold to produce integrated, multi-material plastic parts with enhanced functionality.
A: 2K Injection Molding is widely used in automotive, medical devices, consumer electronics, and industrial equipment for ergonomic, sealed, or multi-color components.
A: Choose materials with compatible chemical, thermal, and mechanical properties to ensure strong adhesion and prevent warping during the 2K Injection Molding process.
A: 2K Injection Molding reduces assembly steps, enables complex designs, improves part durability, and allows multi-material integration in a single production cycle.
