Guide To Medical Injection Molding: Considerations And Best Practices

Introduction

Can a small molded part affect patient safety? In healthcare manufacturing, the answer is yes. Medical Injection Molding helps produce precise, biocompatible, and sterile components at scale. In this guide, you will learn key design rules, material choices, manufacturing methods, compliance needs, and emerging practices for better medical parts.

Understanding Medical Injection Molding in Healthcare

Why Injection Molding Matters

Medical injection molding is a cornerstone in the production of precision healthcare components. It enables manufacturers to consistently produce complex devices with tight tolerances, essential for both single-use items and long-term implants. Key applications include surgical instruments such as forceps, clamps, and retractors, implantable devices like orthopedic or dental components, and disposable consumables including syringes, IV tubing, and Petri dishes.

One of the primary advantages of injection molding is accuracy. The process allows for repeatable, high-precision parts that meet stringent dimensional requirements, minimizing assembly errors and ensuring device reliability. Repeatability is another crucial benefit: once a mold is validated, every cycle produces nearly identical parts, which is critical for regulatory compliance and patient safety. Additionally, cost efficiency is achieved through automation, low material waste, and the ability to scale production volumes without significant increases in unit cost. Finally, the process delivers durable components capable of withstanding sterilization processes, chemical exposure, and mechanical stress without degradation.

Regulatory Frameworks

Compliance with regulatory standards is non-negotiable in medical injection molding. The U.S. Food and Drug Administration and international standards such as ISO define the rules that ensure device safety and effectiveness.

Medical devices are categorized into three classes based on risk. Class I includes low-risk items like test tubes and tongue depressors. Class II covers moderate-risk products such as contact lenses or infusion devices, sometimes further divided into IIa and IIb for medium and medium-to-high risk. Class III consists of high-risk devices like pacemakers or implantable prosthetics. The classification affects both the level of regulatory scrutiny and the manufacturing controls required during injection molding.

Cleanroom and Process Standards

Maintaining a controlled environment is essential to prevent contamination of sensitive medical components. Cleanrooms for medical injection molding are typically maintained at ISO Class 7–8, ensuring particulate matter is minimized. These environments are equipped with HEPA filtration, strict airflow management, and monitored temperature and humidity to maintain optimal molding conditions.

In addition to physical controls, processes must adhere to sterilization protocols compatible with the materials being used. This includes validation for autoclaving, gamma irradiation, or ethylene oxide sterilization when necessary. Proper cleanroom practices combined with rigorous process standards help guarantee that molded medical components are safe, consistent, and ready for clinical use.

Design Principles for Medical Parts

Material Selection for Medical Applications

In Medical Injection Molding, material selection should begin with the device’s clinical function, patient contact level, sterilization method, and expected working environment. A material that performs well in a consumer product may fail in a medical setting if it cannot tolerate disinfectants, body fluids, heat, radiation, or repeated handling. For this reason, engineers often evaluate biocompatibility, dimensional stability, mechanical strength, moisture absorption, and long-term chemical resistance before finalizing the resin.

Sterilization compatibility is especially important. Autoclaving exposes parts to heat and moisture, gamma radiation can affect polymer structure, and ethylene oxide requires materials that can withstand chemical exposure without deformation or residue-related performance issues.

Geometry and Manufacturability

A well-designed medical part must be easy to mold repeatedly without defects. Uniform wall thickness helps the molten resin cool at a consistent rate, reducing the risk of sink marks, voids, warpage, and internal stress. When thickness changes are unavoidable, smooth transitions, chamfers, or radii should be used instead of abrupt steps.

Draft angles are another practical requirement. Vertical walls need enough taper so the molded component can release cleanly from the tool without scratches, drag marks, or dimensional distortion. Rounded corners are also preferred over sharp internal edges because they improve material flow and reduce stress concentration.

Ribs and bosses should strengthen the part without creating thick sections. Ribs are typically designed thinner than the main wall to avoid surface sink, while bosses should be supported with ribs or gussets instead of being made overly thick. Gate and parting line placement also affect both performance and appearance. Gates should support balanced filling, while parting lines should be positioned where they do not interfere with sealing surfaces, assembly areas, or visible cosmetic zones.

Precision and Tolerances

Medical components often need to fit with other molded, metal, electronic, or soft-touch parts, so tolerance planning must be handled early. Commercial tolerances may be suitable for simple disposable items, while fine tolerances are often required for diagnostic housings, fluid-path components, implant-related parts, and assemblies with critical alignment needs.

Designers should avoid specifying unnecessarily tight tolerances on every feature because this can increase tooling cost and production difficulty. Instead, critical-to-function dimensions should be clearly identified, while less important areas can use practical molding tolerances.

Simulation tools can improve Medical Injection Molding outcomes before tooling begins. Mold-flow analysis helps predict filling balance, weld lines, air traps, shrinkage, sink marks, and warpage. Cooling simulation can also reveal hot spots that may cause uneven shrinkage. By resolving these issues during the design stage, manufacturers can reduce mold modifications, shorten development cycles, and improve the consistency of final medical parts.

Advanced Manufacturing Techniques

Specialized Injection Molding Methods

Advanced Medical Injection Molding is not limited to standard thermoplastic molding. Different medical components require different molding strategies depending on wall thickness, material behavior, part geometry, bonding needs, and production volume. Selecting the right process early helps reduce redesign risk and improves consistency during validation and scale-up.

Insert molding and overmolding are often compared, but they solve different design problems. Insert molding places a pre-made component inside the mold before resin flows around it, making it useful for reinforced assemblies or components with embedded hardware. Overmolding builds one material over another molded substrate, often improving grip, sealing, cushioning, or user comfort.

Tooling and Production Considerations

Tooling decisions directly affect part quality, lead time, and production cost. Prototype molds are commonly used during early development because they allow design testing and small-batch production before committing to full-scale tooling. For long-term production, high-volume steel molds provide better durability, tighter dimensional control, and longer service life, especially when repeated cycles and strict medical quality expectations are required.

A reliable mold must also manage cooling, ejection, and surface quality. Cooling channels should be designed to keep the part temperature uniform, because uneven cooling can lead to warpage, shrinkage, or dimensional variation. Ejection mechanisms must release the part without leaving functional damage or visible defects in critical areas. Surface finishing also matters, especially for medical housings, handles, and parts that require smooth cleaning, controlled texture, or clear visual inspection.

Post-Processing Options

Some medical molded components require secondary operations after molding to meet assembly, marking, or performance requirements. These processes should be planned during the design stage rather than added as an afterthought.

Common post-processing options include:

● Ultrasonic welding for joining molded components without adhesives.

● Pad printing for adding instructions, symbols, or identification marks.

● Laser engraving for durable part marking and traceability.

● Pickouts for forming internal undercuts or complex features that are difficult to mold directly.

Surface finish influences both function and appearance. A polished surface may support easier cleaning or transparency, while a textured finish can improve grip and hide minor cosmetic marks. For medical parts, the selected finish should match the component’s use, sterilization needs, handling requirements, and inspection standards.

Quality Assurance and Process Optimization

Validation and Monitoring

Quality assurance in Medical Injection Molding must be built into the process before full production begins. For medical parts, visual inspection alone is not enough; the molding process must prove that it can repeatedly produce safe, stable, and dimensionally accurate components. This is where IQ, OQ, and PQ validation become essential.

During production, injection parameters should be continuously monitored. Melt temperature, injection pressure, holding pressure, cooling time, mold temperature, and filling speed can all affect shrinkage, warpage, flash, voids, and short shots. Stable monitoring helps manufacturers identify small process shifts before they become large quality failures.

Prototyping and Scaling

Before moving into full-scale manufacturing, medical parts should pass through controlled prototyping and small-batch production. Bridge tooling is especially useful when a design is close to final but still needs functional testing, dimensional checks, or material verification. It allows teams to test molded parts in real conditions without immediately investing in long-life production tooling.

Risk control should also be introduced early. Common methods include:

● PFMEA to identify possible process failures before production.

● Mold-fill simulation to predict air traps, weld lines, sink marks, and filling imbalance.

● Cross-functional reviews involving design, tooling, quality, regulatory, and production teams.

These steps help reduce costly mold changes and prevent delays during product launch. For medical components, scaling is not only about producing more parts; it is about proving that every production batch can meet the same performance, cleanliness, and documentation requirements.

Emerging Practices

Modern Medical Injection Molding increasingly relies on scientific molding and data-driven optimization. Scientific molding uses controlled testing and documented process windows to make production more predictable. When paired with AI-based monitoring, manufacturers can analyze real-time data and adjust process conditions more quickly, helping reduce waste and improve part consistency.

3D printing is also becoming more valuable in early development. It can support fast design iteration, ergonomic testing, and custom device concepts before injection mold tooling begins. In some projects, 3D-printed prototypes help confirm geometry, while injection molding validates the final material, surface finish, strength, and production-ready performance.

Applications and Practical Impact

Medical Device Production

Medical Injection Molding supports the production of medical parts that require stable dimensions, controlled material performance, and repeatable quality. For implantable devices, such as orthopedic components and dental fixtures, the process helps create parts with precise geometry, smooth surfaces, and reliable mechanical strength. These products must be compatible with human tissue and able to perform safely under demanding conditions.

Surgical tools are another important application area. Components such as forceps, clamps, scalpel handles, retractors, and instrument housings often require strong medical-grade materials that can resist repeated sterilization, chemical exposure, and mechanical stress. Injection molding allows these parts to be produced with consistent shape, grip, and structural integrity, which is important for safe and efficient clinical use.

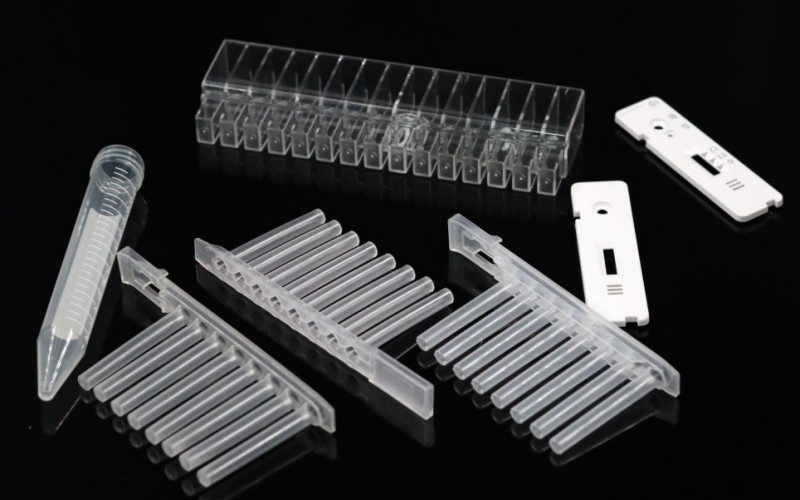

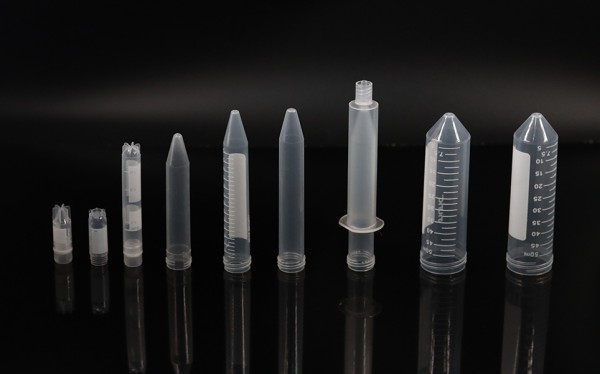

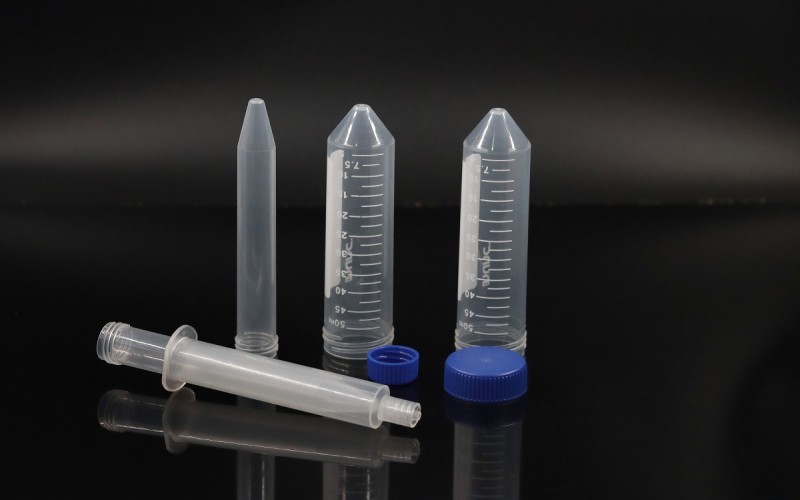

Consumables and Packaging

For high-volume consumables, injection molding is especially valuable because it can produce large quantities of uniform parts with low material waste. This helps medical suppliers maintain stable output while meeting cleanliness and performance expectations.

Advantages in Healthcare

The practical impact of injection-molded medical products can be seen across hospitals, laboratories, dental clinics, and device manufacturing. The main benefits include:

● Consistency: Each validated molding cycle can produce parts with repeatable dimensions and performance.

● Patient safety: Biocompatible materials and controlled production reduce contamination and failure risks.

● Regulatory compliance: Documented processes support quality management and traceability.

● Cost-effectiveness: Automated molding supports efficient production for both disposable items and precision medical components.

Conclusion

Medical Injection Molding helps create safe, precise, and reliable medical components. Success depends on proper material selection, DFM principles, specialized molding methods, and strict quality assurance. With experience in medical mold design, CNC machining, prototyping, and injection molding support, Taizhou Huangyan Guangchao Mould Co., Ltd. helps customers develop compliant, durable, and scalable medical parts for demanding healthcare applications.

FAQ

Q: What is Medical Injection Molding used for?

A: Medical Injection Molding produces precise plastic parts for devices, diagnostics, surgical tools, and sterile packaging.

Q: What materials are common in Medical Injection Molding?

A: Medical Injection Molding often uses PP, PE, PC, PEEK, TPE, and silicone based on biocompatibility.

Q: Why is process validation important?

A: Medical Injection Molding requires IQ/OQ/PQ validation to confirm repeatability, quality control, and regulatory compliance.
