In 2025, three-color plastic injection molding is becoming a game-changer for automotive lighting. This technology allows different materials and colors to be combined into a single molding cycle, eliminating the need for post-painting or assembly. The result: more durable, better-looking headlight and taillight components.
GUANGCHAO, a leading supplier of automotive lighting molds, is at the forefront of this shift. Their precision-engineered molds help carmakers streamline production, maintain consistent quality, and meet the increasingly strict requirements for modern vehicle lighting systems.
Three-color injection molding enables manufacturers to produce multi-material, multi-color lighting parts in one step — saving time, cutting costs, and improving accuracy.
Using durable engineering plastics like polycarbonate (PC), polymethyl methacrylate (PMMA), and acrylonitrile butadiene styrene (ABS) ensures optical clarity, impact resistance, and compliance with global lighting standards.
Advanced mold systems increase production speed, reduce waste, and deliver consistently high-quality results.
Intelligent quality control with machine vision and AI ensures color accuracy, optical performance, and defect-free parts.
Sustainable manufacturing is supported by optimized molding cycles, energy-efficient machines, and the use of recycled or bio-based plastics.

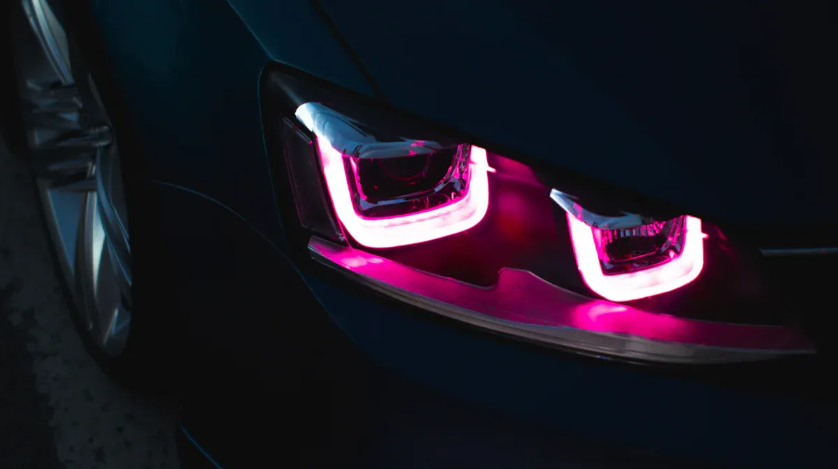

Modern automotive lights are no longer just functional — they’re a design statement. In 2025, we see multi-color effects integrated directly into lighting units. Premium finishes such as deep metallic greens, satin chameleon blues, and glossy graphite tones are molded in rather than painted, improving both durability and environmental impact.
Brands working with GUANGCHAO molds use these effects in headlights, DRLs (daytime running lights), and taillights. RGBW LEDs allow dynamic light shows synchronized with driving modes or music, while matrix LED and OLED panels create slim, sleek lighting profiles — a style trend especially visible in EVs.
Automotive lighting must meet strict global regulations:
FMVSS 108 in the US defines brightness, beam patterns, and glare limits.
UN/ECE standards in Europe govern light intensity, color temperature, and adaptive functions.
China, Japan, and other regions have similar technical requirements.
Green trends make people pick cars with eco-friendly lights. Using lighter and recycled materials helps cut pollution and supports a circular economy. Multi-color injection molding lets car makers make cool lights and still follow car light and green rules.
Three-color (or multi-shot) molding integrates multiple materials in a single mold.
| Feature | Two-Station Tri-Color | Three-Station Tri-Color |
|---|---|---|
| Turntable Positions | 2 positions (180°) | 3 positions (120°) |
| Mold Sets | 2 sets | 3 sets |
| Injection Method | Two materials injected into a shared mold cavity | Each material injected into its own mold station |
| Best Use | Parts with separate, non-touching zones | Parts with closely integrated or overlapping zones |
| Cost | Lower | Higher |
For complex automotive lighting, GUANGCHAO recommends true tri-color molding. This approach ensures precise material boundaries, allowing lenses, housings, and decorative trims to be formed together with perfect alignment.
The most used plastics are polycarbonate, PMMA, and ABS. Each one has special things it does well.
1、Polycarbonate is best for headlight lenses and covers. It is tough, clear, and can take a lot of heat. Polycarbonate works up to 130°C, so it is good for front headlights. About half of all headlight molds use polycarbonate.

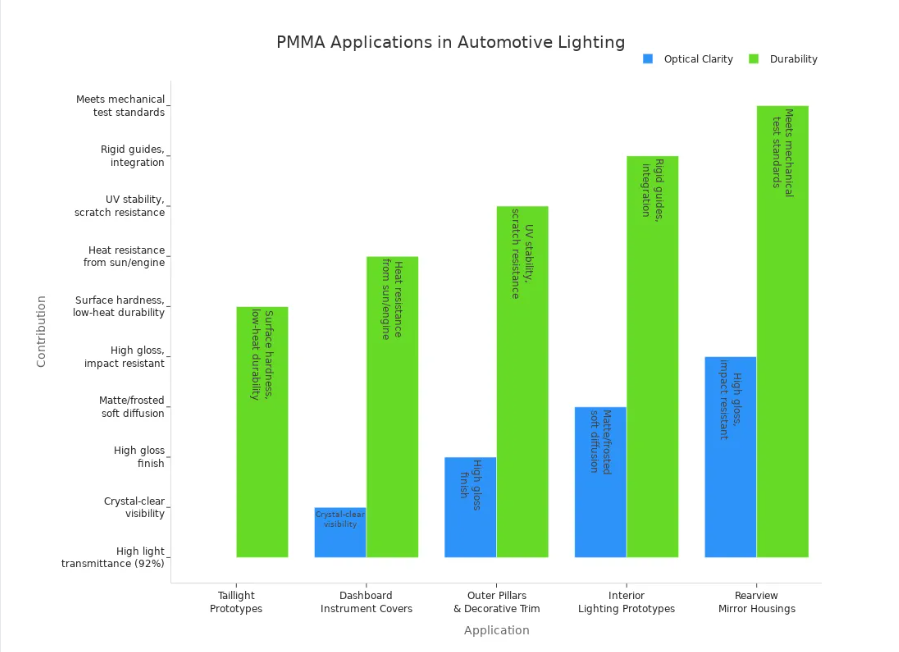

2、PMMA is very clear and shiny. You use it for taillight covers and trim. PMMA is easy to shape and not expensive, but it can break easier and does not like heat as much as polycarbonate.
3、ABS is good for inside trim and some light test parts. It does not fade in the sun, does not scratch easily, and is tough. ABS is often mixed with PMMA to make it shinier and stronger.
Here is a table that shows how these plastics help with clear lights and strong parts:
| Material | Optical Clarity | Durability Features | Common Lighting Applications |
|---|---|---|---|
| PC (Polycarbonate) | Excellent light transmission | High impact strength, heat resistance up to 130°C, UV stability | Headlight lenses, DRL covers, reflectors |
| PMMA | Superior gloss and clarity | Good weathering resistance, moderate impact strength | Taillight lenses, trim elements |
| ABS | Opaque, not for optical surfaces | High toughness, scratch resistance, UV stability | Inner housings, bezels |
We pick plastics based on what each headlight part needs. For example, you use polycarbonate for the lens and PMMA for taillight covers. You use ABS for inside lights and trim. Picking the right plastic makes sure your headlights are safe, last long, and look good.
GUANGCHAO optimizes mold design to suit each plastic’s flow characteristics, ensuring optical surfaces remain distortion-free.
You can make your plastic molds better with things like hot runner systems and molds with more than one spot. Hot runner systems keep the plastic hot inside the mold. This means you can work faster and use less plastic. You do not waste plastic on extra runners. You also get better color changes and fewer mistakes with multi-color molding.
In 2025, you see new hot runner systems like Stargate HRS, Glow HRS, and Flexflow HRS. These systems control heat well and fill the mold fast. You do not get lines or marks in your headlights. Flexflow HRS lets you make fancy car parts right from the mold, so you do not need to paint them.
Mold systems incorporate:
Hot Runner Systems (e.g., Flexflow-style balanced temperature control) for faster cycles, minimal waste, and better color changeover.
Hot runner systems make three-color injection molding work better for car lights. You can change colors faster and use less energy. Special nozzles mix colors quickly and stop lines from showing. You get headlight parts that look the same every time.
Multi-Cavity Layouts to produce several identical parts per cycle.
Family Molds to make different components — such as lenses and housings — in one cycle for perfect fitment.
Molds with more than one spot help you make more parts at once. Multi-cavity molds let you make many of the same part in one go. Stack molds help you make more without making the mold bigger. Family molds let you make different parts together, which is good for tricky headlight sets.
Precision Gating to prevent flow marks or weld lines on optical surfaces.
Robotics and automated part handling further improve consistency and reduce labor costs.
You also use robots and machines to move parts and check the process. Computer programs help you design better molds and set the right injection steps before you start making parts. These tools help you make fewer mistakes and work faster.
It is hard to get perfect color and clear lights in multi-color injection molding for car lights. You must follow strict rules like SAE J578C. These rules say what colors headlights and taillights should be. Keeping colors right is tough because many things can go wrong:
LED colors can change from one batch to the next. This makes it hard to keep colors the same.
You have to pick between colored LEDs and white LEDs with colored filters. Colored LEDs match the rules better, but they cost more and are harder to use. White LEDs with filters are easier, but they can make lights less bright.
Wires and circuits change with each LED color. This can make colors look different and make building the lights harder.
You need to choose the right plastic for the lens, like red acrylic or clear polycarbonate. Each plastic changes how the color looks and how much it costs.
You must balance quality, price, and rules. Sometimes you have to give up one thing to keep the color right.
You use smart quality control to fix these problems. Machines with cameras check every part for mistakes. They use different lights to find cracks and color problems. High-quality cameras and AI software can spot tiny scratches and color issues right away. Robots and moving belts help check parts quickly and the same way every time.
For shiny parts, you use dome lights to stop glare. Smart computer programs find small mistakes. Machine vision checks light patterns and color sharpness to meet rules like ECE R112. You set up these systems to make sure the lights are bright and aimed right. Software helps you move LEDs to get the best light. This keeps your headlight parts safe and up to standard.
You want to make car lights faster and spend less money. Three-color injection molds help you do this. You can make parts with three colors in one mold. This means you do not need to make and put together each color part by itself. You save time and pay less for workers.
Stack molds and in-mold degate make things even better. You can make more parts at once and do less extra work. You use less plastic and energy, so you save money. Multi-color injection molding lets you finish parts in one step. You do not need to paint or put them together later.
Here is a table that shows how three-color molds help you:
| Benefit | How It Works | Result |
|---|---|---|
| Fewer manufacturing steps | Multiple colors injected in one cycle | Faster production |
| Lower labor costs | Less manual assembly needed | Save money |
| Less material waste | Efficient mold design and in-mold degate | Eco-friendly production |
| Better part quality | Fewer joins and seams | Stronger, more reliable parts |
| Energy savings | One molding cycle instead of many | Lower energy bills |
Most customers report shorter production cycles and better part consistency, especially in high-volume OEM programs.

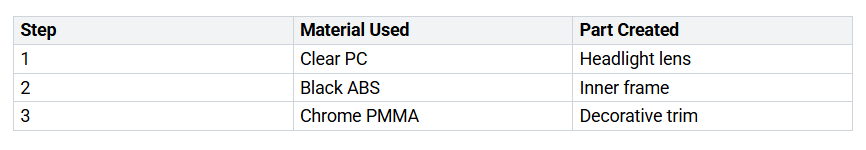

GUANGCHAO supplied a three-color mold for an OEM headlamp project. The process formed:
This reduced production from three separate molding and assembly steps to one integrated cycle — eliminating post-painting and improving part alignment.
You get many benefits from using multi-color molds in automotive lighting. First, you save time because you do not need extra steps to join or paint parts. The mold makes the headlight ready for use. Second, you lower costs by using less labor and fewer materials. Third, you improve the look and strength of the headlights. The parts fit together perfectly, so you do not see gaps or weak spots.
You make your production faster and more reliable.
You get better quality and design for your automotive lights.
You help the environment by using less energy and material.
Multi-color injection molding gives you a smart way to meet new design trends and strict rules. You can create headlights that look modern and work well on the road.
Three-color injection molding makes car headlights and taillights better in 2025. You get nicer looking lights and fewer steps to put them together. The parts are strong and high quality. GUANGCHAO and other companies use this method to meet hard design rules.
You see smooth color mixing and steady quality.
Making car lights is quicker and easier.
New lighting systems like LED, OLED, and laser give more safety and cool designs.
Multi-color molding lets you use tough and clear materials at the same time. You get ready for the future with smart lights, green materials, and fast changes in car lighting.
Regulatory expertise — mold designs tailored to meet FMVSS, ECE, and regional standards.
Material science knowledge — optimized gating, cooling, and cavity geometry for optical-grade plastics.
Turnkey solutions — from CAD mold design to trial runs and full-scale production support.
Q: What is three-color injection molding?
A: It’s a process that injects three different plastics or colors into one mold cycle, creating a single integrated part without extra painting or assembly.
Q: Why do carmakers use it for headlights?
A: It reduces cost and assembly time while improving precision, durability, and design flexibility.
Q: Which plastics work best for automotive lighting?
A: PC for lenses, PMMA for decorative optical elements, ABS for housings and trims — all of which GUANGCHAO molds handle with high precision.
