Have you ever wondered how modern vehicles achieve both strength and lightweight design? Automotive Molding plays a key role in creating precise, durable parts for dashboards, panels, and structural components. In this article, you will learn the top three precision molding techniques, how to choose the right process, and their applications across interior, exterior, and under-the-hood automotive components.
Straight injection molding serves as the cornerstone of precision plastic manufacturing for automotive components, offering a balance of speed, repeatability, and dimensional accuracy. The process begins with a detailed digital 3D model of the part, typically developed using CAD software. Engineers analyze the part’s geometry to determine optimal gate placement, wall thickness, and draft angles to ensure consistent material flow and avoid defects. Once the mold is designed, specialized machining equipment creates high-precision cavities from hardened steel, capable of sustaining hundreds of thousands of injection cycles without losing tolerances.
During production, thermoplastic pellets are melted in the injection unit and forced into the mold cavity under high pressure. The molten plastic fills the cavity, conforming to its shape, while cooling channels embedded within the mold regulate temperature to minimize shrinkage and warping. Once the material solidifies, ejector pins carefully release the part from the mold without causing deformation. This process allows repeated production cycles with consistent quality, making it ideal for high-volume manufacturing.
Step | Description | Key Considerations |
CAD Design | 3D modeling of automotive part | Gate placement, wall thickness, draft angles |

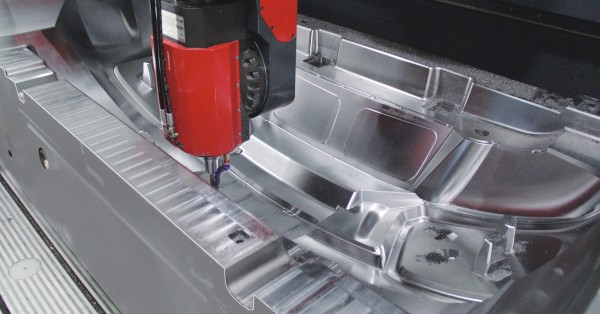

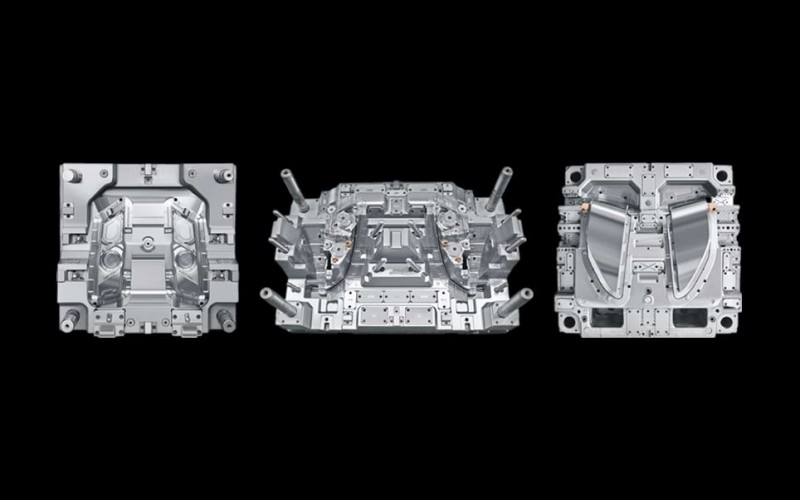

Mold Fabrication | CNC-machined steel mold | Tolerances, surface finish, cooling channel integration |
Injection | Molten plastic forced into cavity | Injection pressure, temperature control, material flow |
Cooling & Solidification | Plastic cools to final shape | Uniform cooling, shrinkage prevention |
Ejection | Part removed from mold | Ejector placement, minimal stress on part |

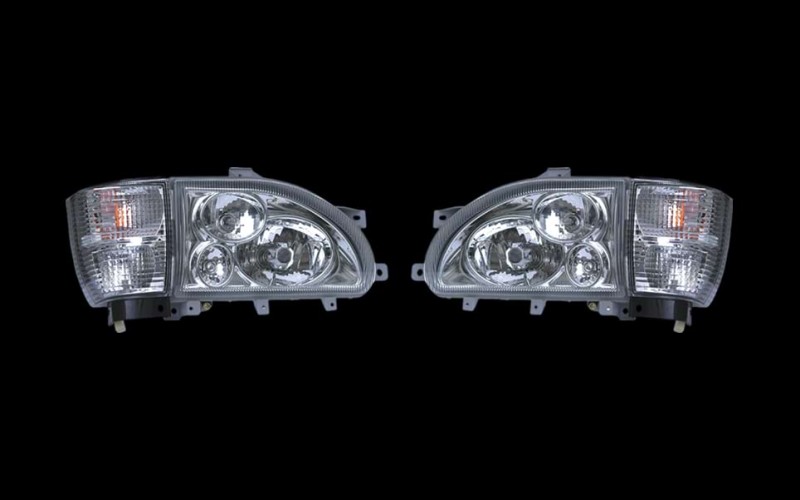

Straight injection molding is extensively used across interior and exterior automotive components where precision and durability are critical. Interior applications include dashboards, instrument clusters, seat adjustment mechanisms, and center console frameworks. These components require tight tolerances to integrate electronic assemblies and mechanical controls seamlessly, ensuring ergonomic functionality and long-term reliability. Exterior parts, such as basic body panels and trim elements, also benefit from straight injection molding because of its ability to produce smooth surfaces and consistent dimensions in large quantities.
Beyond standard panels, straight injection molding accommodates functional housings for sensors, relays, and other electronic modules. The versatility of this process allows manufacturers to produce parts with varying wall thicknesses, integrated clips, or mounting points in a single mold, reducing assembly complexity and labor costs.
The advantages of straight injection molding extend across precision, efficiency, and surface quality. High precision and tight tolerances are achieved through careful mold design, precise machining, and controlled injection parameters, ensuring that parts consistently meet design specifications. Cost efficiency emerges from the ability to produce thousands of identical parts in a single mold, minimizing labor input and reducing material waste.
Surface finish quality is another critical benefit; the process can produce smooth, defect-free surfaces that may require minimal post-processing. Additionally, the mold can be designed to include inserts or reinforcement structures, allowing the combination of plastic with metal or composite elements in a single production step. This capability enhances the structural strength of automotive components while maintaining lightweight properties, essential for both performance and fuel efficiency.
Gas-assisted injection molding is a specialized technique designed to produce hollow or partially hollow plastic components, optimizing material usage and improving part performance. During the process, an inert gas—commonly nitrogen—is injected into the molten plastic inside the mold. The gas pushes the plastic away from the core, forming hollow sections in thick-walled areas while leaving solid plastic at the outer surfaces. This controlled displacement reduces cycle time, minimizes shrinkage, and ensures a more uniform cooling process.
The mold is engineered with precision channels to guide the gas flow, ensuring the hollow cavities form exactly where needed without compromising structural integrity. Temperature control is critical: cooling circuits maintain uniform heat distribution to prevent warpage, while injection parameters are carefully monitored to achieve consistent wall thicknesses. This process enables the production of components that are both lightweight and mechanically strong, making it particularly valuable in automotive applications.
Process Stage | Key Activity | Critical Considerations |
Molten Plastic Injection | Plastic flows into mold cavity | Optimal injection pressure and temperature |
Gas Injection | Nitrogen or inert gas introduced | Accurate gas volume, timing, and path control |
Hollow Formation | Plastic displaced from core | Wall thickness uniformity, cavity precision |
Cooling | Mold channels regulate temperature | Prevent warpage, minimize shrinkage |
Part Ejection | Hollow component removed | Avoid stress points, maintain shape |
Gas-assisted molding is widely used for large and complex automotive parts that require both strength and reduced weight. Interior and exterior components such as door panels, dashboard housings, and bumper structures benefit from this technique, as it allows thick sections to remain rigid while significantly lowering material consumption.
This process is also applied to structural supports within vehicles, including cross-members, brackets, and reinforcements, where reduced mass contributes to overall vehicle weight savings without sacrificing stiffness. By enabling hollow sections in strategic areas, designers can achieve optimal strength-to-weight ratios, improving fuel efficiency and vehicle handling while maintaining safety standards.
The primary advantage of gas-assisted molding is its ability to produce parts that are lighter yet maintain high mechanical integrity. Hollowing thick sections reduces warping and prevents sink marks commonly associated with solid injection-molded parts. Material consumption decreases, lowering both cost and environmental impact.
Additionally, this method allows for thicker components to be manufactured without creating excessive internal stress, making it ideal for panels and housings that must withstand repeated mechanical loads. Designers can exploit this flexibility to optimize component geometry, balance weight distribution, and integrate complex internal features that would be challenging with traditional solid molding.
Multi-shot injection molding, including two-shot (2K) and three-shot (3K) processes, enables the creation of complex automotive parts by combining multiple materials or colors within a single mold cycle. In two-shot molding, one material—typically a rigid thermoplastic—is injected first, cooled, and then the mold rotates or shifts to a second cavity where a softer or differently colored material is injected. Three-shot molding extends this concept by introducing a third material, allowing even greater design flexibility.
This sequential injection process allows designers to integrate soft-touch surfaces, rigid structural elements, and aesthetic color features in a single component without secondary assembly. Material interfaces are engineered for molecular-level bonding, ensuring strong adhesion and minimizing the risk of delamination or mechanical failure under operational stresses. Mold design is critical, requiring precise alignment, temperature control, and injection timing to maintain dimensional accuracy across multiple materials.
Process Type | Materials Integrated | Typical Features |
Two-Shot (2K) | Rigid + Soft Plastic | Ergonomic grips, soft-touch buttons |
Three-Shot (3K) | Rigid + Soft + Color Variant | Instrument bezels, multi-color trims |
Overmolding | Pre-molded substrate + second material | Sealing surfaces, protective overlays |
Multi-shot molding is widely applied to interior components where functionality, ergonomics, and aesthetics intersect. Common examples include steering wheel grips that combine rigid cores with soft elastomeric surfaces for comfort, and instrument panels that integrate different colored plastics for visual cues. Sealing components, such as gaskets or flexible trim edges, benefit from overmolding by combining rigid supports with pliable materials to ensure airtight or water-resistant interfaces.
Interior trims are another significant application, where the process allows for texture variation, color differentiation, and multi-material integration. Panels can incorporate soft-touch zones, rigid structural ribs, and decorative features in a single manufacturing step, reducing assembly complexity and maintaining tight tolerances.
The key benefits of multi-shot and overmolding processes lie in efficiency, precision, and enhanced user experience. By eliminating the need for secondary assembly, manufacturers reduce labor costs and the potential for assembly errors, while producing more consistent parts. Ergonomic features, such as soft-touch grips or tactile buttons, are seamlessly integrated with rigid substrates, improving usability and comfort.
Molecular-level bonding between different materials enhances the durability and mechanical integrity of parts, ensuring they withstand repeated use and environmental exposure. Dimensional accuracy is maintained across complex geometries, allowing multiple components to fit together precisely without post-processing. This approach also enables creative design possibilities, such as combining multiple textures, colors, and hardness levels in a single automotive component, enhancing both functional and aesthetic appeal.
Selecting the right material is a critical factor in automotive precision molding, as components must withstand mechanical stress, temperature fluctuations, and long-term wear. High-performance engineering plastics, such as PEEK, PC/ABS, PA (polyamide), and PBT (polybutylene terephthalate), are commonly employed for their combination of strength, thermal stability, and chemical resistance. These materials support complex geometries, provide dimensional stability, and maintain mechanical integrity under repeated loading, making them ideal for structural housings, interior trims, and under-the-hood components.
Modern precision molding increasingly integrates digital tools and smart technologies to optimize both process efficiency and product quality. AI-driven mold flow simulations predict how molten plastic will fill complex cavities, helping engineers adjust gate placement, injection pressure, and cooling strategies before production begins. Real-time monitoring systems embedded in molds collect data on temperature, pressure, and cycle timing, enabling predictive maintenance and minimizing unexpected downtime.
The automotive industry is moving toward sustainable and high-efficiency production methods. Electric injection molding machines are gaining popularity for their energy efficiency, reduced maintenance needs, and higher precision compared to traditional hydraulic systems. Vertical injection molding leverages gravity and specialized molds to enable complex part geometries, particularly for components in electric vehicles such as motor housings and charging connectors, improving cycle efficiency and multi-material integration.
Trend | Key Benefit | Typical Application |
Electric Injection Molding | Energy savings, precision control | High-volume interior and structural parts |
Vertical Injection Molding | Complex geometry, multi-material capability | EV motor housings, connectors, and large panels |
Selecting the optimal molding process begins with a careful evaluation of part complexity, material characteristics, and production volume. Complex geometries with thin walls or intricate internal features may require multi-shot or overmolding techniques, while larger, simpler panels are well-suited to straight injection molding or gas-assisted processes. Material selection also plays a critical role: high-temperature engineering plastics often need molds and machines capable of precise thermal management, whereas softer or elastomeric materials may be incorporated using overmolding. Production volume further influences the choice; high-volume parts benefit from robust molds and efficient cycle times, whereas low-volume prototypes may leverage soft or aluminum tooling to reduce upfront costs and shorten lead times.
Each precision molding process offers distinct advantages depending on functional requirements.
Process | Best Use Case | Key Strength |
Straight Injection | High-volume structural parts | Repeatable quality, tight tolerances |
Gas-Assisted | Thick or hollow components | Reduced weight, uniform cooling |
Multi-Shot / Overmolding | Multi-material/colored parts | Integrated ergonomics, aesthetics |
Aligning the molding process with part requirements, material behavior, and production objectives is critical. Parts requiring mechanical strength and heat resistance may need straight or gas-assisted molding, while user-interactive components benefit from multi-shot or overmolding. Early collaboration between design and manufacturing teams ensures optimal material selection, mold configuration, and cycle efficiency, reducing scrap and assembly errors.
Taizhou Huangyan Guangchao Mould Co., Ltd. provides high-precision automotive molding solutions, including straight, gas-assisted, and multi-shot techniques, delivering lightweight, durable, and cost-efficient parts while ensuring superior quality and production efficiency.
A: Automotive molding is the precision injection process used to produce high-quality plastic components for vehicles.
A: The three main types are straight injection molding, gas-assisted molding, and multi-shot or overmolding techniques.
A: Selection depends on part complexity, material, production volume, and functional requirements.
A: Precision molding is used for dashboards, interior trims, bumpers, and electronic housings where accuracy and durability are required.
