Class-A surface parts like fascias, exterior trims, and interior dashboards are the most heavily scrutinized components in a vehicle. A minor surface defect does not just mean a rejected part. It often results in a compromised brand perception for the automaker. As automotive industry standards rise, the margin for error in plastic injection molding has essentially disappeared. This is particularly true given the premium aesthetic demands driven by the rapidly growing electric vehicle (EV) market. Selecting a partner to build your automotive mould requires moving past basic capabilities. You must evaluate a supplier’s engineering rigor and robust quality systems. This comprehensive guide breaks down the precise criteria for vetting top-tier manufacturers. You will learn how to assess tooling design, validate industry compliance, and identify hidden operational risks before committing to a long-term manufacturing partnership.
Class-A Requires Specialized Tooling: Achieving flawless SPI A-1 to A-3 finishes demands precise mold flow analysis, optimized cooling systems, and high-grade steel (SPI Class 101/102).
Compliance is Non-Negotiable: True automotive suppliers must operate under IATF 16949 standards and provide robust PPAP (Production Part Approval Process) documentation.
Scientific Molding Separates Tiers: Elite suppliers rely on data-driven "Scientific Molding" (e.g., moisture testing, melt flow indexing) rather than guesswork to prevent aesthetic defects.
Long-Term Stability Matters More Than Quoted Price: The cheapest quoted auto parts mould often hides major risks in scrap control, tooling maintenance, and production continuity.
Class-A surfaces represent the pinnacle of automotive interior and exterior design. They encompass highly visible, high-touch areas throughout the vehicle. These include exterior body panels, front grilles, lighting bezels, interior dashboards, and center consoles. By definition, a Class-A threshold demands zero cosmetic defects. Even under harsh inspection lighting, the final molded component must exhibit absolute visual perfection. You cannot tolerate any flow marks, sink marks, knit lines, or visible parting lines on these critical surfaces. The aesthetic standard directly dictates the engineering approach behind the tool.
The widespread shift toward electric vehicles has aggressively elevated these Class-A standards. Electric powertrains eliminate the traditional masking noise of an internal combustion engine. Electric vehicles feature significantly quieter cabins. As a result, consumers are hypersensitive to every aspect of the interior environment. They notice slight squeaks caused by poor part fitment. They scrutinize mismatched textures and uneven gloss levels. Because EVs often carry luxury price points, buyers expect premium aesthetics and flawless material quality. A subpar surface finish shatters the illusion of high-end engineering.
Choosing an underqualified supplier carries cascading business risks. The consequences extend far beyond a simple batch of rejected parts. When a manufacturer fails to hit Class-A standards on the first try, you face delayed vehicle launch timelines. You will experience exponential scrap rates during production ramp-up. Furthermore, reworking complex tooling after cutting the steel is highly disruptive. Modifying a hardened steel cavity to fix a persistent flow mark can halt production for weeks. Securing the right manufacturing partner mitigates these quality and schedule risks from day one.
World-class tooling begins long before steel hits the CNC machine. You must evaluate if the supplier conducts rigorous mold flow analysis during the initial design phase. Engineers use advanced software to simulate how molten plastic will behave inside the cavity. This simulation predicts potential weld lines, air traps, and uneven shrinkage. Identifying these risks early allows the engineering team to adjust wall thicknesses or optimize cooling channel layouts preemptively.
Gate placement and parting line design separate average toolmakers from industry leaders. For Class-A surfaces, suppliers must design complex gate placements. They often utilize hot runner systems or submarine gates to keep injection points hidden on the non-visible (B or C) side of the component. Similarly, they must design invisible parting lines. Any flash or mismatch along the parting line immediately compromises the Class-A surface rating.
Best Practice: Always request the full mold flow analysis report during the design review phase. Elite suppliers will actively walk you through their simulation data. They will explain exactly how their design choices prevent visual defects.

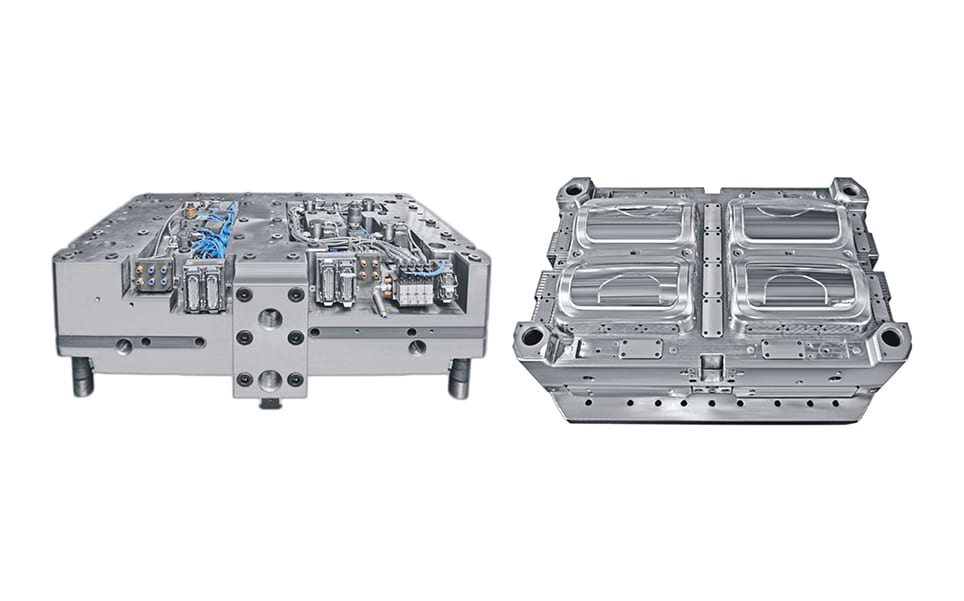

High-volume automotive parts demand immense durability from the tooling. The Society of Plastics Industry (SPI) defines strict classifications for injection molds. For Class-A automotive production, you exclusively require SPI Class 101 or 102 molds. These tools endure extreme pressure, abrasive resins, and rapid thermal cycling over hundreds of thousands of shots.
Ensure your supplier uses premium hardened steel for all core and cavity blocks. The steel hardness should rate at 48+ Rc (Rockwell Hardness scale) or higher. Proper hardness prevents premature wear and maintains a consistent SPI A-1 to A-3 diamond polish over the mold's lifespan. The tool design must also incorporate hardened wear plates on moving parts like lifters and sliders. Conformal cooling channels—complex thermal control paths machined into the steel—are essential. They regulate mold temperature precisely, preventing the uneven cooling responsible for sink marks.
SPI Classification Summary Chart:
SPI Class | Expected Cycles | Cavity/Core Hardness | Typical Automotive Application |
|---|---|---|---|
Class 101 | 1,000,000+ | 48+ Rc | High-volume continuous production (fascias, main dashboard panels). |
Class 102 | Up to 1,000,000 | 48 Rc | Medium-to-high volume production for abrasive engineering resins. |
Class 103 | Under 500,000 | 28+ Rc | Low-volume specialized trims; not recommended for strict Class-A longevity. |
Modern automotive injection molding requires strict adherence to "Scientific Molding" principles. This methodology relies entirely on data and sensor feedback rather than operator guesswork. Look for manufacturers practicing decoupled molding. This technique separates the injection phase from the packing phase, offering ultimate control over the polymer's behavior inside the cavity.
Hygroscopic resins like Nylon (PA) or PC/ABS are notoriously difficult to process. They absorb moisture from the ambient air rapidly. If processed wet, the moisture turns to steam inside the barrel, causing splay or silver streaks on the Class-A surface. Verify the supplier's ability to manage moisture content. They should utilize desiccant dryers and perform moisture analyzer tests before every production run. Furthermore, they must monitor the melt flow index to control polymer degradation. Scientific molders adjust processing parameters based on real-time cavity pressure sensors. This data-driven approach guarantees absolute consistency from the first shot to the millionth.
You cannot compromise on quality assurance frameworks when sourcing automotive components. Basic ISO 9001 certification indicates a foundational quality management system, but it falls short for Tier 1 and Tier 2 automotive supply chains. You must verify active IATF 16949 certification. The International Automotive Task Force developed this standard specifically for the automotive sector. It mandates rigorous processes for continuous improvement, defect prevention, and the reduction of variation and waste in the supply chain. A facility operating under IATF 16949 is structurally designed to handle demanding automotive requirements.
Your supplier must also demonstrate mastery of the Production Part Approval Process (PPAP). PPAP serves as the ultimate proof that the manufacturer understands your engineering specifications. It confirms their process can consistently produce parts meeting those specs during actual production runs. During the vetting stage, ask for historical examples of their PPAP submissions. Review their dimensional reports to ensure they perform comprehensive layouts. Inspect their material certifications. Most importantly, evaluate their capability studies. A top-tier molder will easily provide statistical process control data showing Cpk and Ppk values exceeding 1.33 for critical dimensions.
Finally, examine the facility's metrology capabilities and traceability systems. A Class-A supplier should operate an in-house, climate-controlled metrology lab. They require advanced equipment like Coordinate Measuring Machines (CMM) and 3D optical scanners. These tools verify micron-level tolerances (e.g., ±0.025mm) across complex organic surfaces. Beyond physical measurement, the supplier must offer end-to-end traceability. If a cosmetic defect arises in the field, they must be able to trace the exact resin batch, operator, and machine parameters linked to that specific production date.
Procurement teams frequently fall into the low-quote trap. Selecting an auto parts mould based solely on the lowest initial tooling quote or the cheapest piece-price is a fundamentally flawed strategy. A superficially low price almost always indicates compromised steel quality, inadequate cooling designs, or missing engineering support. The initial quotation represents only a small part of the real manufacturing picture.
You must shift your evaluation toward long-term production reliability. By factoring these elements, you gain a more realistic picture of the manufacturing partnership.
Key Factors to Review Beyond the Quoted Price:
Tooling Maintenance: High-volume molds require systematic cleaning, lubrication, and replacement of wear components. Ensure the contract clearly defines tooling ownership and preventative maintenance terms. If a low-spec tool breaks down after 50,000 shots, the disruption will immediately erase any perceived early advantage.
Quality and Scrap Control: Class-A components have zero tolerance for visual defects. If a low-cost tool yields a 10% reject rate due to persistent flow lines or sink marks, you are paying for wasted resin, wasted machine time, and manual sorting labor. A better-engineered tool with strong scrap control delivers far greater production stability over time.
Logistics and Downtime: Supply chain reliability directly impacts your assembly line. You must factor in communication delays across time zones and fluctuating shipping risks. More critically, calculate the operational impact of an assembly line shutdown caused by late deliveries. A dependable partner helps prevent these disruptions.
Common Mistake: Failing to stipulate a guaranteed mold life expectancy in the purchase order. Always tie the final tooling payment to a successful PPAP sign-off and a guaranteed cycle count.
Finding the right supplier requires a systematic vetting process. You need to test their engineering capabilities, verify their operational setup, and validate their technical claims. Follow this four-step roadmap to shortlist elite manufacturing partners.
Step 1: Test Their DFM (Design for Manufacturability) Pushback
A credible supplier will never blindly accept a CAD file and immediately issue a quote. Instead, they will challenge your design. They conduct thorough DFM reviews to identify potential molding issues before they happen. Expect them to offer engineering suggestions. They might recommend adjusting draft angles, coring out thick sections to prevent sink, or altering the parting line for cleaner aesthetics. This proactive pushback proves they prioritize moldability and surface stability without sacrificing the critical Class-A finish.
Step 2: Eliminate the Middlemen
Ensure you deal directly with the factory. Many procurement teams mistakenly engage brokers or sourcing agencies thinking it simplifies the process. Unfortunately, middlemen create dangerous information silos. When a complex surface defect arises during trials, you need direct communication with the tooling engineers and process technicians. Direct access prevents delays, eliminates accountability gaps, and ensures clear troubleshooting when required.
Step 3: Audit the Facility (The 5S Check)
Whenever possible, conduct an on-site visit or a comprehensive virtual tour. You are looking for concrete evidence of operational excellence. Evaluate the facility against the 5S methodology (Sort, Set in order, Shine, Standardize, Sustain).
Cleanliness: A factory producing pristine Class-A surfaces must operate with cleanroom-level organization to prevent dust and oil contamination.
Equipment: Verify they run state-of-the-art injection machines with appropriate tonnage capabilities for your specific part sizes.
Data Security: Ensure they have secure CAD data protection protocols in place to safeguard your proprietary automotive designs.
Step 4: Request Bridge Tooling or Prototyping
Never commit blindly to a multi-cavity, high-production tool without seeing physical proof of capability. Demand small-batch samples or prototype runs. Many top suppliers offer aluminum bridge tooling to simulate the final production process quickly. This step allows you to physically verify their steel polishing capabilities, texture applications, and overall processing control before you authorize full-scale production tooling.
Sourcing a reliable supplier for Class-A automotive components is ultimately an exercise in risk mitigation. You cannot achieve zero-defect aesthetic perfection through luck. Success relies on carefully matching your specific project requirements with a manufacturer possessing stringent quality systems. They must demonstrate advanced scientific molding expertise, utilize premium SPI-certified tooling, and offer transparent operational planning.
Stop gambling with your automotive supply chain. Evaluate your potential partners against the rigorous technical and business criteria outlined above. Take the first step toward flawless production today. Submit your CAD files or project requirements to a qualified engineering team for a comprehensive DFM review and technical consultation.
A: Class A surfaces are high-visibility, exterior or interior areas (like dashboards) requiring flawless, highly polished finishes with zero cosmetic defects. Class B surfaces are secondary or semi-visible areas (like door undersides) that allow minor aesthetic imperfections. Class C surfaces are hidden, purely functional components (like internal brackets) where appearance does not matter, focusing only on structural integrity.
A: A Class 101 injection mold is engineered for extremely high-volume production. Built with premium hardened steel (48+ Rc) and extensive cooling and wear components, it is expected to reliably produce 1 million cycles or more. Achieving this maximum lifespan requires strict adherence to routine, preventative tooling maintenance.
A: Mold flow analysis simulates the injection process before any steel is cut. It is critical because it predicts exactly where molten plastic will hesitate, trap air, or form weld lines. Engineers use this data to adjust gate locations, wall thickness, and cooling channels, thereby preventing costly visual defects on the final Class-A surface.
A: Yes, but it presents significant challenges. Recycled resins often suffer from batch inconsistency, varying melt flow rates, and trace contaminants that cause surface splay or black specks. Top molders manage these issues by employing strict material blending ratios, rigorous desiccant drying, and real-time scientific molding adjustments to maintain the required aesthetic standards.
