The healthcare sector demands perfection. When lives are on the line, the components within a ventilator, a syringe, or a surgical tool cannot fail. This is where medical device injection molding steps in. It is the backbone of modern medical manufacturing, providing a way to produce high volumes of complex, sterile, and reliable parts.
If you are looking for a way to scale production while maintaining rigorous safety standards, this guide is for you. We will explore how a medical injection mold transforms raw resin into life-saving equipment, the critical role of cleanrooms, and why material selection dictates the success of your final product.
At its core, a medical injection mold is a precision-engineered tool designed to produce plastic parts with extreme repeatability. Unlike general consumer goods, medical components have zero tolerance for defects. A tiny burr or a microscopic air bubble could compromise the sterility or function of a disposable device.
In the medical field, "close enough" is never enough. We focus on high precision engineering because these parts often interface directly with the human body or sensitive diagnostic fluids. The mold must account for material shrinkage, thermal expansion, and the complex geometries required for modern healthcare applications.
Steel Grade: We use high-grade stainless steel (like S136 or 420V) to resist corrosion from medical-grade resins.
Surface Finish: Molds often require mirror-polished finishes to ensure parts are easily ejected without lubricants, which could contaminate the product.

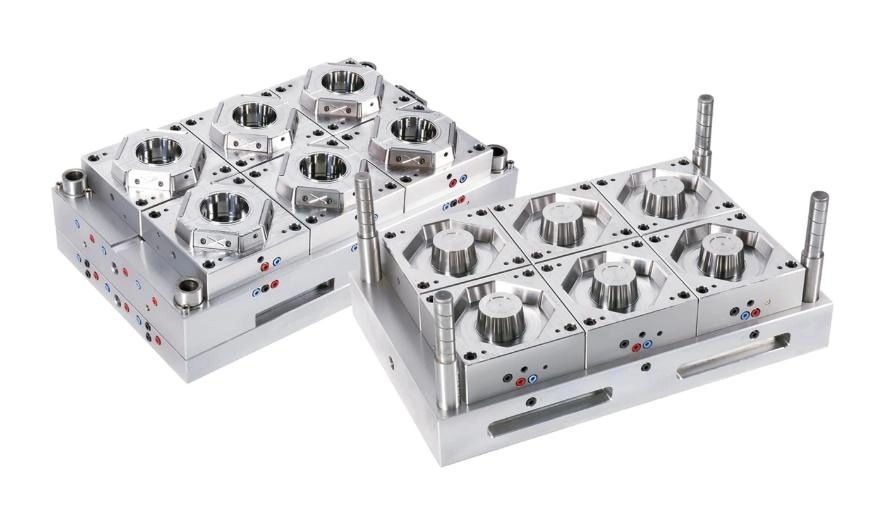

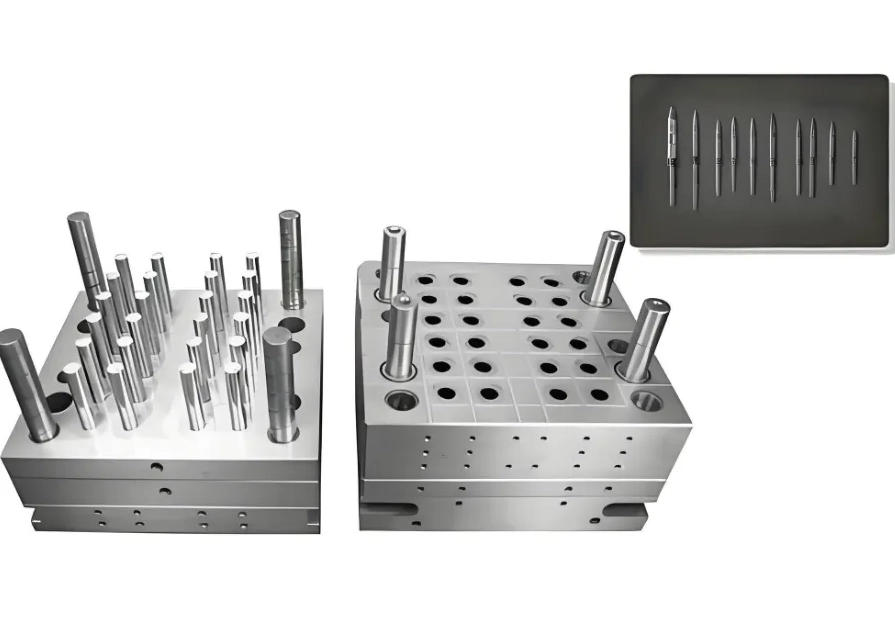

Multi-Cavitation: To meet high demand, a medical injection mold often features multiple cavities, allowing us to produce dozens of parts in a single cycle.
| Feature | Standard Injection Molding | Medical Injection Molding |
| Material | General-purpose ABS/PP | Medical-grade Thermoplastic |
| Environment | Standard Factory Floor | ISO Certified Cleanroom |
| Tolerance | +/- 0.1mm | +/- 0.01mm (High precision) |
| Validation | Basic QC | IQ/OQ/PQ Protocols |
Choosing the right thermoplastic is the most critical decision in the design phase. It affects everything from the part’s strength to how it reacts to sterilization. Not all plastics are created equal, especially when they need to be biocompatible.
PEEK (Polyetheretherketone): Known for its incredible strength and resistance to high temperatures. It is often used for implants.
Polycarbonate (PC): It is clear, tough, and can withstand radiation sterilization. Ideal for fluid delivery systems.
Polypropylene (PP): Excellent chemical resistance. It is the "go-to" for disposable device components like syringe barrels.
Silicone (LSR): While technically an elastomer, it is vital for flexible parts like gaskets and valves.
Any material used in a medical injection mold must pass USP Class VI or ISO 10993 testing. These tests ensure the plastic doesn't leach harmful chemicals or cause adverse reactions when in contact with human tissue. We prioritize custom material blends when a project has unique requirements, such as antimicrobial properties or specific radiopacity for X-ray visibility.
They must survive the cleaning process. Whether it is Autoclave (steam), Ethylene Oxide (EtO), or Gamma radiation, the thermoplastic must maintain its structural integrity. For example, some grades of PC might yellow under Gamma rays, so we select stabilized versions to keep the product looking professional and safe.
You cannot manufacture a medical injection mold component in a dusty warehouse. Contamination is the enemy. Even a single skin cell or a speck of dust can lead to a batch rejection.
Most medical molding happens in ISO Class 7 or 8 cleanrooms. These rooms control the concentration of airborne particles. We use HEPA filters to scrub the air and maintain positive pressure to keep outside contaminants from entering.
Gown Procedures: Technicians wear hairnets, gloves, and lab coats.
Electric Machines: We prefer all-electric injection molding machines. They are cleaner than hydraulic ones because they don't use oil, which could leak or vaporize.
Automated Packaging: To minimize human contact, robots often pick the parts from the medical injection mold and drop them directly into sterile packaging.
Cleanroom manufacturing isn't just about "being clean." It is about consistency. By controlling the temperature and humidity, we ensure the thermoplastic behaves exactly the same way during every cycle. This leads to high precision results that meet the strictest FDA or CE regulations.
As medical devices get smaller and more portable, the demand for thin wall molding has skyrocketed. Think about a handheld glucose monitor or a wearable insulin pump. These devices need to be lightweight but incredibly durable.
When the walls of a part are thinner than 1mm, the plastic cools very quickly. We must inject the material at high speeds and pressures to fill the medical injection mold before the resin solidifies. This requires specialized machinery and highly vented molds to prevent "burn marks" from trapped air.
Sometimes, we create parts so small they fit on the tip of a needle. These tiny components require a custom approach to mold design.
Micro-features: Features as small as 5 microns.
Tight Tolerances: Often measured in microns, not millimeters.
Specialized Gate Design: How the plastic enters the mold is crucial to avoid shearing the material.
Using high precision micro-molding allows surgeons to perform less invasive procedures. Smaller tools mean smaller incisions, faster recovery times for patients, and lower risk of infection. We focus on pushing the limits of what a medical injection mold can achieve in these small scales.
The best way to save money and time is to design the part correctly from the start. DFM is the process of optimizing a part's design so it is easier and cheaper to produce using a medical injection mold.
Uniform Wall Thickness: This prevents warping and "sink marks." If you need different thicknesses, we use gradual transitions.
Draft Angles: We add a slight taper (usually 1-2 degrees) to the vertical walls. This allows the part to slide out of the medical injection mold easily.
Radiused Corners: Sharp corners are stress concentrators. Rounded corners improve material flow and make the part stronger.
Before we cut steel for a custom mold, we use Moldflow simulation software. This tells us how the thermoplastic will flow into the cavity. It identifies potential problems like air traps or weak "knit lines" before they happen.
When engineers work with the molder early on, they can identify ways to simplify the medical injection mold. Perhaps two parts can be combined into one, or a complex side-action can be replaced with a simpler shut-off. This reduces the risk of failure during the validation phase.
In the medical world, if it wasn't documented, it didn't happen. Validation is the process of proving that your medical injection mold consistently produces parts that meet specifications.
Installation Qualification (IQ): We verify that the machine and the medical injection mold are installed correctly and have all the necessary utilities (power, water, air).
Operational Qualification (OQ): We test the limits of the process. What happens if the temperature is 5 degrees higher? What if the pressure drops? We find the "operating window" where the parts are still perfect.
Performance Qualification (PQ): We run the machine under normal conditions for an extended period (usually three separate lots) to prove the process is stable and repeatable over time.
We use advanced metrology tools to verify high precision dimensions.
CMM (Coordinate Measuring Machine): For 3D measurements.
Vision Systems: Automated cameras that check every single part for defects in real-time.
Pressure Decay Testing: To ensure a disposable device like a connector doesn't leak.
Every batch of thermoplastic and every run of the medical injection mold is tracked. If a problem is discovered months later, we can trace it back to the specific day, machine, and material lot used. This level of accountability is what makes medical manufacturing so reliable.
While quality is the priority, we also understand that cost is a factor. Managing the lifecycle of a medical injection mold requires a balance between initial investment and long-term savings.
A high precision mold is an expensive upfront investment. However, as you scale to millions of units for a disposable device, the cost per part drops significantly. We help clients decide between "bridge tooling" (cheaper, aluminum molds for low volume) and "production tooling" (hardened steel for high volume).
Hot Runner Systems: These keep the plastic molten in the channels, reducing waste. In a medical injection mold, this saves expensive medical-grade resin.
Multi-Cavity Molds: Increasing the number of cavities allows you to produce more parts in the same amount of time.
Automation: Using robots for degating and packaging reduces labor costs and eliminates human error.
A medical injection mold is a valuable asset. Regular maintenance—cleaning, lubricating, and inspecting for wear—is essential. We follow strict preventative maintenance schedules to ensure the mold lasts for its intended lifespan, which can be over a million cycles for high-grade steel.
Medical device injection molding is a complex but rewarding field. It requires a deep understanding of thermoplastic behavior, high precision engineering, and a "quality-first" mindset. By following the steps in this guide—from material selection to rigorous IQ/OQ/PQ validation—you can ensure your medical device is safe, effective, and ready for the market.
Whether you are developing a custom surgical tool or a high-volume disposable device, the success of your project hinges on the quality of your medical injection mold. Partnering with an expert who understands the nuances of cleanroom manufacturing and medical regulations is the best way to turn your vision into a reality.
Q: How long does it take to build a medical injection mold?
A: Typically, it takes 8 to 12 weeks. This includes the design phase, DFM analysis, CNC machining, and the initial "T1" samples for testing.
Q: Can I use recycled plastics in medical molding?
A: Generally, no. Most medical standards require "virgin" thermoplastic to ensure there are no contaminants or inconsistencies in the material properties.
Q: What is the difference between a cold runner and a hot runner mold?
A: A cold runner creates a "sprue" or waste plastic that must be trimmed. A hot runner keeps the plastic hot, so it never solidifies in the channels, which is more efficient for high-volume production of a disposable device.
Q: Why is stainless steel used for medical molds?
A: Stainless steel resists rust and corrosion. Since many medical parts are molded in cleanrooms where moisture is controlled, and some resins release corrosive gases, stainless steel ensures the medical injection mold remains pristine.
