When you look at a modern sportbike or a rugged cruiser, you aren't just looking at metal and rubber. You are seeing the result of advanced polymer engineering. Motorcycle injection molding is the backbone of the powersports industry, responsible for everything from sleek fairings to durable engine covers. This process allows brands to create complex shapes that are both lightweight and incredibly strong. In this guide, we will dive deep into how this technology works, why it matters for your bike's performance, and what makes a high-quality manufacturer stand out in a crowded market.

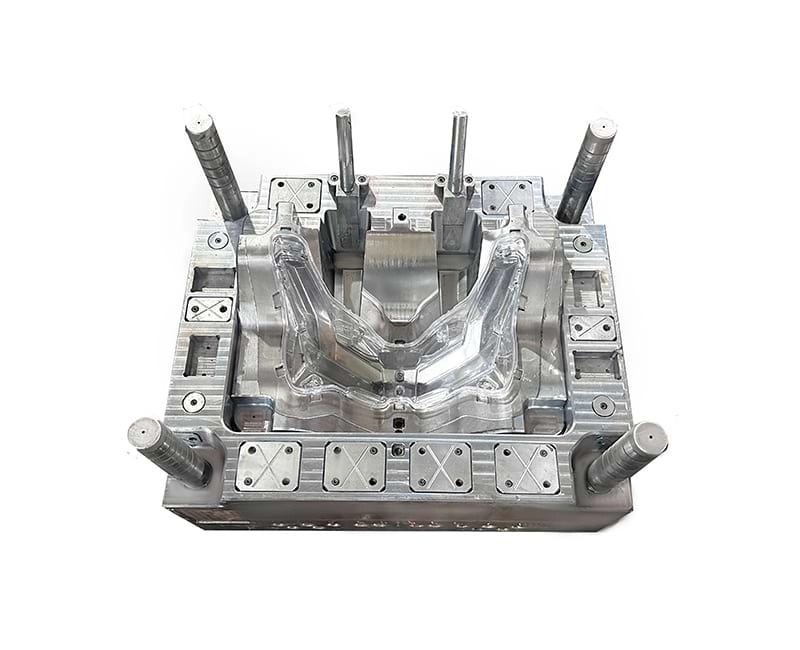

Understanding how motorcycle injection molding works requires a look at precision engineering. It starts with raw plastic granules. These pellets are fed into a heated barrel, melted into a liquid state, and then forced under immense pressure into a custom-designed steel mold.
For motorcycles, this isn't a one-size-fits-all job. Because bikes face high vibrations and weather exposure, the precision of the mold is critical. If the mold is off by even a fraction of a millimeter, the fairing won't snap onto the frame correctly. We use high-grade CNC machines to cut these molds, ensuring that every ABS plastic component fits like a glove.
The cooling phase is equally vital. Once the liquid plastic fills the cavity, it must cool uniformly. If one side cools faster than the other, the part warps. This is why professional motorcycle injection molding setups use integrated cooling lines within the tool itself. It ensures the final product is straight, true, and ready for high-speed use.
| Process Step | Key Equipment | Critical Factor |
| Feeding | Hopper & Granules | Material purity |
| Melting | Reciprocating Screw | Temperature control |
| Injection | Hydraulic Ram | Injection pressure |
| Cooling | Internal Water Lines | Cycle time |
| Ejection | Ejector Pins | Part integrity |
Not all plastics are created equal. When we talk about motorcycle injection molding, two heavyweights dominate the scene: ABS plastic and PP material. Choosing between them depends entirely on where the part sits on the bike.
ABS plastic (Acrylonitrile Butadiene Styrene) is the gold standard for bodywork. It is famous for its impact resistance and toughness. When you drop a bike, you want the fairings to flex or scuff rather than shatter into sharp pieces. ABS handles paint beautifully, which is why your glossy tank covers and side panels are almost always made from it.
On the other hand, PP material (Polypropylene) is the unsung hero of internal components. It is lighter than ABS and has incredible chemical resistance. You will often find PP used for mudguards, internal brackets, and battery trays. It is a heat resistant choice that won't degrade when exposed to oil or fuel spills.
ABS plastic Benefits: High stiffness, excellent aesthetics, easy to chrome plate.
PP material Benefits: Low density (saves weight), high fatigue resistance, superb chemical shield.
Motorcycles are heat engines. The proximity of plastic parts to the exhaust headers and engine blocks means that heat resistant properties are non-negotiable. During the motorcycle injection molding phase, engineers often add glass fibers or specialized stabilizers to the base resin.
These additives raise the Heat Deflection Temperature (HDT) of the part. For example, a standard radiator shroud must maintain its shape even when the engine is running at 100°C or higher. Without the right precision in the material blend, the plastic would soften and sag, eventually interfering with the cooling fan or other moving parts.
We also focus on thermal expansion. Metals and plastics expand at different rates. If we design a custom plastic cover that bolts directly to an aluminum engine case, we must account for this "growth" in our mold design. It is a delicate balance that separates a premium manufacturer from a budget one.

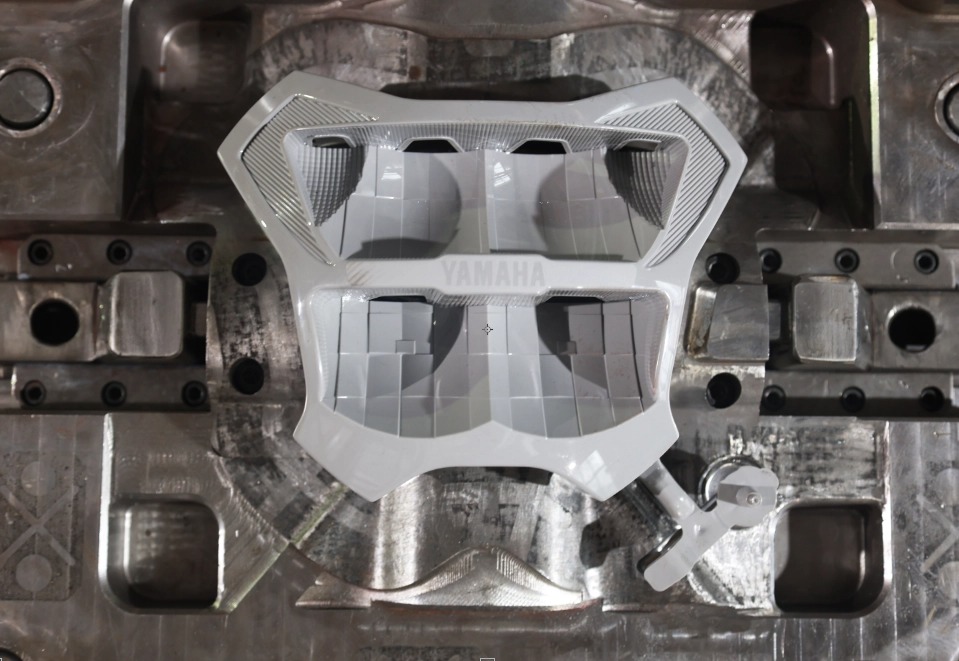

In the world of aftermarket upgrades and OEM replacements, custom designs are king. Motorcycle injection molding allows for a level of detail that old-school fiberglass simply cannot match. We can integrate "snap-fits," molded-in hinges, and textured surfaces directly into the part.
Precision in tooling is the most expensive and important part of the journey. A high-quality steel mold can cost tens of thousands of dollars, but it can produce hundreds of thousands of identical parts. This consistency is vital for a manufacturer who needs to supply parts for a global production line.
When designing a custom fairing set, we focus on three H3-level pillars:
If the walls of a part vary too much in thickness, you get "sink marks"—ugly dimples on the surface. We use flow simulation software to ensure the ABS plastic fills the mold evenly.
The "gate" is where the plastic enters the mold. If placed poorly, it leaves a visible mark or creates a weak point. We strategically hide gates in areas that are covered by the bike's frame or seat.
Why do brands choose motorcycle injection molding over 3D printing or vacuum forming? The answer lies in scalability and unit cost. While the initial setup for a mold is high, the cost per part drops significantly once you start pumping out thousands of units.
Efficiency is another major factor. A single cycle—from injection to ejection—can take less than 60 seconds. This allows a manufacturer to keep up with the high demands of the peak riding season. Furthermore, the scrap rates are incredibly low. Any excess plastic from the "runners" can often be reground and mixed back into the raw PP material, making the process more sustainable.
Speed: High-volume output in short timeframes.
Uniformity: Every part is a 100% match to the master CAD file.
Durability: Injection molded parts are generally stronger than 3D-printed counterparts due to the high-pressure bonding of the plastic molecules.
Safety is paramount on two wheels. A failed plastic bracket shouldn't lead to a crashed bike. That is why motorcycle injection molding involves rigorous testing phases.
First, we perform "First Article Inspection" (FAI). We take the very first parts off the line and measure them against the original blueprints using CMM (Coordinate Measuring Machines). We look for precision in bolt hole alignment and clip tension.
Next comes the stress testing. We subject ABS plastic parts to UV light exposure to ensure they won't fade or become brittle in the sun. We also perform "drop tests" at various temperatures. A heat resistant part must stay tough in the winter and rigid in the summer. If a part fails, we go back to the mold and adjust the cooling or injection parameters.
Finding a reliable manufacturer is the final piece of the puzzle. You need a partner who understands the specific stresses of the motorcycle environment. It isn't just about having the machines; it is about having the expertise to suggest the right PP material or a better rib structure for a custom part.
A top-tier manufacturer provides a "Design for Manufacturing" (DFM) report before any steel is cut. This report identifies potential problems like thin walls or impossible angles. This saves you time and money, ensuring that your motorcycle injection molding project is a success from day one.
Motorcycle injection molding is a fascinating blend of art and high-tech science. From selecting the right ABS plastic for a race fairing to ensuring a bracket is sufficiently heat resistant, every step requires precision. By understanding these processes, you can make better decisions for your bike or your business. Whether you need a custom one-off project or mass-market production, the quality of the mold and the expertise of the manufacturer will always be the deciding factors in performance and style.
Q: Can I use 3D printing instead of injection molding for my bike?
A: For prototyping, yes. But for actual riding, motorcycle injection molding is superior. It produces parts with better structural integrity and surface finish.
Q: Is ABS plastic better than Carbon Fiber?
A: Carbon fiber is lighter, but ABS plastic is much more cost-effective and handles impacts better without shattering.
Q: Why are custom molds so expensive?
A: They are made from high-grade hardened steel and require hundreds of hours of precision machining to ensure they can withstand the pressures of the injection process.
