What is the process of plastic bottle molding?

Views: 0     Author: Site Editor     Publish Time: 2025-05-09      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Plastic bottle molding is a fundamental process in the manufacturing industry, responsible for producing the ubiquitous containers used in packaging beverages, cosmetics, and Commodity products. Understanding the intricate steps involved in this process is crucial for manufacturers aiming to improve efficiency and product quality. This article delves deep into the plastic bottle molding process, exploring the technologies, methodologies, and innovations shaping this sector.

One of the critical components in this process is the PET Preform Mould, which plays a significant role in determining the final product's quality and performance. The utilization of high-precision molds ensures that the bottles meet the required standards for various applications.

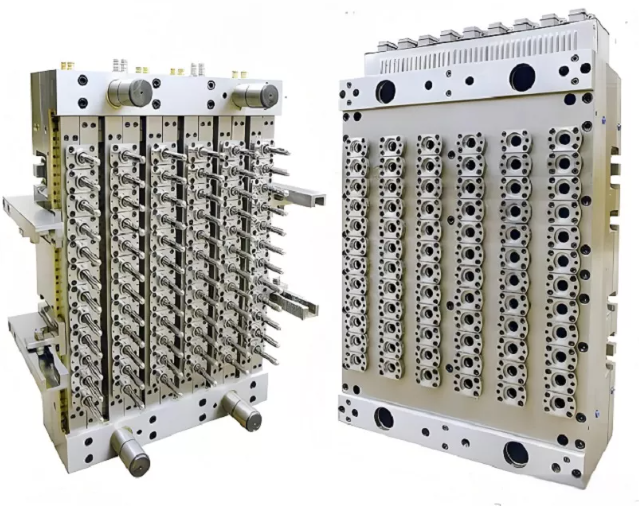

PET Preform Mould1




Materials Used in Plastic Bottle Molding

The selection of materials is a crucial step in the molding process. The most commonly used materials include polyethylene terephthalate (PET), high-density polyethylene (HDPE), and polypropylene (PP). Each material offers distinct properties:

Polyethylene Terephthalate (PET)

PET is favored for its strength, transparency, and impermeability to gases and moisture. It's widely used for carbonated beverage bottles due to its excellent barrier properties. The quality of the PET Preform Mould directly impacts the bottle's performance, especially in high-pressure applications.

High-Density Polyethylene (HDPE)

HDPE is known for its durability and resistance to chemicals, making it suitable for packaging detergents and industrial chemicals. Its molding process requires precise temperature control to ensure material stability and prevent defects.

Polypropylene (PP)

PP offers high fatigue resistance and is often used for products that require a hinge, such as flip-top bottles. The molding process for PP must account for its higher melting point and the need for uniform cooling.





The Molding Process Steps

The plastic bottle molding process involves several critical steps, each requiring meticulous attention to detail to ensure the final product's integrity:

Injection Molding of Preforms

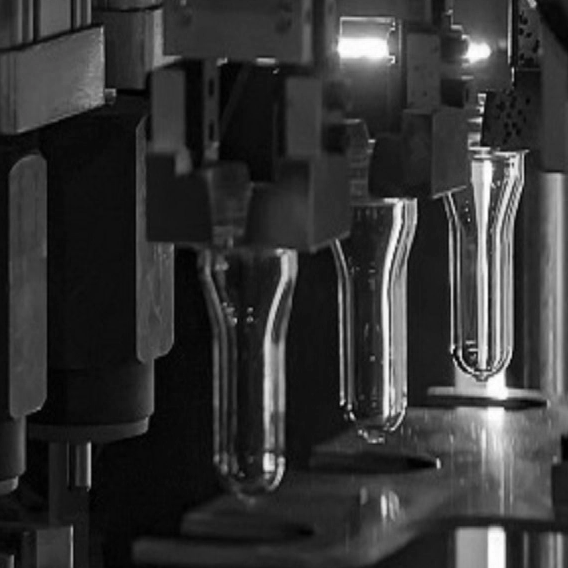

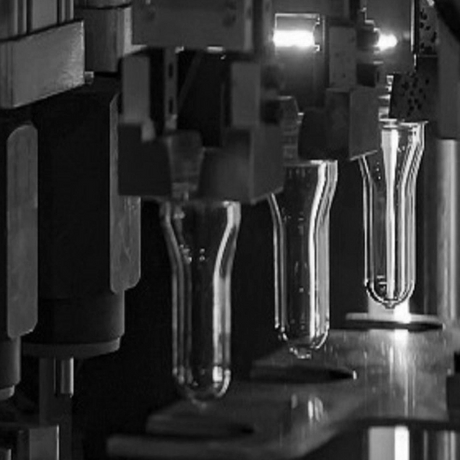

The process begins with injection molding, where plastic granules are melted and injected into a PET Preform Mould to create preforms. These preforms resemble test tubes with threaded necks, designed to be reheated and blown into bottles later. Precision in this step ensures uniform wall thickness and material distribution.

Conditioning of Preforms

After injection molding, preforms are cooled and may be stored or immediately transferred to the blow molding stage. Conditioning involves reheating the preform to the optimal temperature for stretching and blowing. Uniform heating is essential to avoid uneven material distribution in the final product.

Stretch Blow Molding

Stretch blow molding is a two-step process where the heated preform is first stretched vertically by a core rod and then blown into the desired bottle shape using high-pressure air. This biaxial orientation enhances the bottle's strength and clarity. The accuracy of the mould design significantly affects the quality and consistency of the bottles produced.

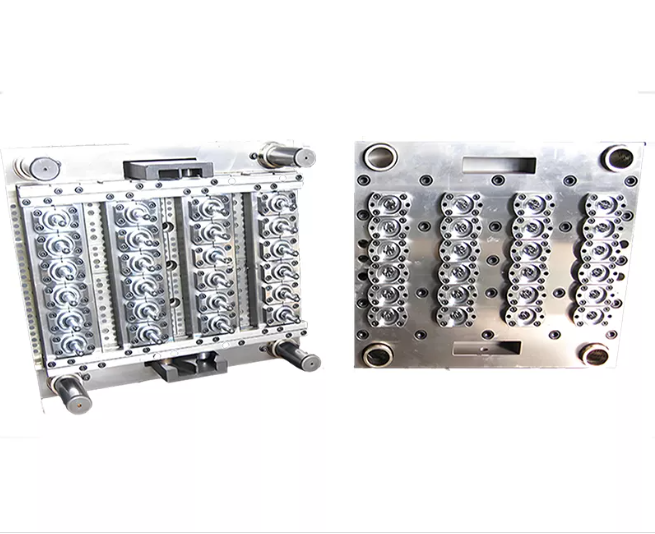

PET Preform Mould2



Types of Blow Molding Techniques

Different blow molding techniques are employed based on the production requirements and bottle specifications:

Injection Stretch Blow Molding (ISBM)

ISBM is widely used for PET bottles, combining injection molding of the preform and blow molding in a single machine. This method offers high clarity and good material distribution, ideal for making lightweight bottles without compromising strength.

Extrusion Blow Molding (EBM)

EBM involves extruding molten plastic into a parison, which is then captured by closing it in a metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle. EBM is suitable for producing complex shapes and handles but may not provide the same material distribution uniformity as ISBM.

Reheat and Blow Molding (RHB)

In RHB, pre-made preforms are reheated and blown into bottles. This process allows manufacturers to purchase preforms and focus solely on the blowing process, offering flexibility in production and reducing initial equipment costs.





Quality Control Measures

Ensuring the quality of plastic bottles involves rigorous testing and inspection:

Dimensional Accuracy

Precise dimensions are crucial for bottle performance, especially for thread specifications on the neck that must match caps and closures. Advanced measurement equipment is used to verify dimensions against standards.

Material Distribution Analysis

Uniform wall thickness ensures structural integrity and reduces material usage. Technologies like infrared tomography are employed to assess the material distribution throughout the bottle.

Pressure and Leakage Tests

Bottles intended for carbonated beverages must withstand internal pressures. Pressure tests simulate conditions to ensure bottles do not fail under stress. Leakage tests guarantee the bottle's seal is secure to prevent contamination and product loss.





Innovations in Plastic Bottle Molding

The industry is experiencing significant advancements driven by environmental concerns and technological progress:

Lightweighting

Manufacturers are reducing the amount of plastic in each bottle to lower costs and environmental impact. This requires precision in the PET Preform Mould design and sophisticated molding techniques to maintain strength and functionality.

Use of Recycled Materials

Incorporating recycled PET (rPET) into new bottles is becoming standard practice. The molding process must adapt to the different properties of rPET, requiring adjustments in temperature and processing parameters to achieve quality comparable to virgin materials.

Smart Manufacturing Technologies

The integration of IoT and automation in molding machinery enhances efficiency and consistency. Real-time monitoring systems allow for immediate adjustments, reducing waste and improving product quality.





Environmental Considerations

Sustainability is a growing concern, and the plastic bottle molding industry is taking steps to mitigate environmental impact:

Biodegradable Plastics

Research into biodegradable plastics offers potential alternatives to traditional materials. Molding these new materials requires specialized equipment and processes to accommodate their unique properties.

Energy Efficiency

Modern molding machines are designed to consume less energy, utilizing electric drives and efficient heating systems. Energy recovery systems are also employed to harness waste heat for other processes.

Waste Reduction

Implementing strict quality control reduces the number of defective products, thereby minimizing waste. Recycling scrap material internally allows manufacturers to reuse materials, further reducing environmental impact.





Case Study: Improving Efficiency with Advanced Mould Design

A leading beverage company sought to reduce production costs while enhancing bottle quality. By collaborating with a mould manufacturer specializing in PET Preform Mould, they redesigned the preform to optimize material distribution. This resulted in a 10% reduction in plastic usage per bottle and increased the production line's speed by 15% due to improved cooling times.





Challenges in Plastic Bottle Molding

Despite technological advancements, manufacturers face several challenges:

Material Fluctuations

Variations in raw material quality can affect the consistency of the bottles produced. Manufacturers must establish strong relationships with suppliers and implement rigorous incoming material inspections.

Regulatory Compliance

Regulations regarding food-grade packaging and environmental standards are continually evolving. Staying compliant requires ongoing investment in new technologies and processes, such as adopting BPA-free materials and reducing volatile organic compound (VOC) emissions.

Market Competition

The industry is highly competitive, with pressure to lower costs without sacrificing quality. Manufacturers are investing in automation and lean manufacturing principles to enhance efficiency and remain competitive.





Future Trends in Plastic Bottle Molding

Looking ahead, several trends are poised to shape the industry:

Customization and Flexibility

Consumers are seeking personalized products, driving manufacturers to adopt flexible molding systems capable of quick changeovers and shorter production runs. Modular mould designs facilitate this flexibility.

Integration of Additive Manufacturing

Additive manufacturing, or 3D printing, is being integrated for prototyping and even producing complex mould components. This technology accelerates the development process and allows for innovative mould designs that were previously unattainable.

Enhanced Recycling Technologies

Advancements in recycling technologies will enable higher percentages of recycled content without compromising quality. Chemical recycling processes are emerging to break down plastics to their monomers for repolymerization.





Conclusion

The process of plastic bottle molding is a sophisticated interplay of material science, engineering, and technology. As the industry evolves, manufacturers leveraging advanced PET Preform Mould designs and embracing innovative techniques will lead the way. The focus on sustainability, efficiency, and adaptability will continue to drive developments, ensuring that plastic bottle molding remains a dynamic and essential part of modern manufacturing.
