Implementing a draft angle is more than just a CAD best practice. It acts as a critical risk-mitigation tool before cutting expensive steel. Omitting draft inevitably leads to severe part distortion, excessive cycle times, and irreversible tool damage. Draft refers to the slight taper applied to vertical walls of a molded part parallel to the parting line. Without this essential taper, cooling plastic shrinks tightly around mold cores, creating massive friction during ejection. Manufacturers who ignore this physical reality face high scrap rates and stalled production launches. This guide serves as a practical framework for engineers and procurement teams to evaluate their designs for manufacturability (DFM). We will explore how different materials, textures, and complex geometries dictate your exact taper requirements. Read on to ensure a seamless transition from prototype to full-scale production.
Many engineers view draft as a purely technical requirement. We need to shift this conversation from engineering theory to bottom-line impact. Producing flawless parts requires a clean ejection phase. Draft directly reduces friction between the cooling plastic and the steel cavity. Less friction means you face a much lower likelihood of drag marks, scuffing, or warping during ejection. When plastic drags against vertical steel walls, the surface finish degrades immediately. This degradation leads to rejected parts at the quality control station. A properly tapered wall eliminates this friction. The part pops off the core effortlessly.
Frictionless ejection also radically improves tool longevity. High ejection forces put immense stress on moving components. Designing adequate taper reduces this mechanical stress on ejector pins and the Plastic Injection Mould itself. Less wear means your production line experiences reduced maintenance downtime. It also translates directly to faster cycle times. Cycle time dictates your overall manufacturing throughput. If parts stick, the machine operator must manually intervene. Manual intervention adds costly minutes to a cycle. Faster cycle times require automated, flawless ejection.
Ignoring draft carries massive financial risk. Sampling a mold without sufficient draft often results in sticking parts. If this happens, you must halt production immediately. You will likely need to rely on EDM (Electrical Discharge Machining) to recut the mold. Recutting hardened steel is expensive and destroys your launch timeline. You can avoid these heavy redesign costs by integrating the correct taper during the initial CAD phase.
Best Practice: Always evaluate ejection forces during the DFM phase before finalizing the tool design.
Common Mistake: Assuming mold release sprays can compensate for poor geometric taper. Sprays leave residue and slow down cycle times.
Industry standard DFM guidelines provide concrete, actionable numbers. We rely on these baselines to ensure parts release cleanly from the steel cavity.
Applying the correct taper depends on the specific feature depth and function. We categorize standard requirements into three main tiers.
Standard Baseline Chart
| Feature Type | Minimum Degree Requirement | Typical Application |
|---|---|---|
| Highly Restricted Walls | 0.5° | Short vertical faces where severe design constraints prevent standard tapers. |
| Standard Feature Depths | 1.0° to 2.0° | The general standard for most internal and external vertical geometry. |
| Shut-off Faces | 3.0° or more | Areas of metal-on-metal sliding contact to prevent premature galling. |
You must view 0.5° as an absolute minimum. Designers should only use it for highly restricted, short vertical faces. Sometimes internal electronic components face extreme space constraints. Engineers might push for 0.5 degrees here. You must polish the steel to a mirror finish to make this work. Most standard feature depths perform best within the 1.0° to 2.0° range. This general standard covers the majority of conventional enclosures. Shut-off faces involve metal-on-metal sliding contact. They demand a minimum of 3.0° to prevent friction-induced galling over time. A generous taper ensures the steel faces clear each other instantly upon opening.
Deep core features require extra attention. The industry standard dictates adding 1° per inch of depth. Longer cores create more friction as the material shrinks. The shrinkage force multiplies over the long surface area. We use this rule to counter this cumulative force.

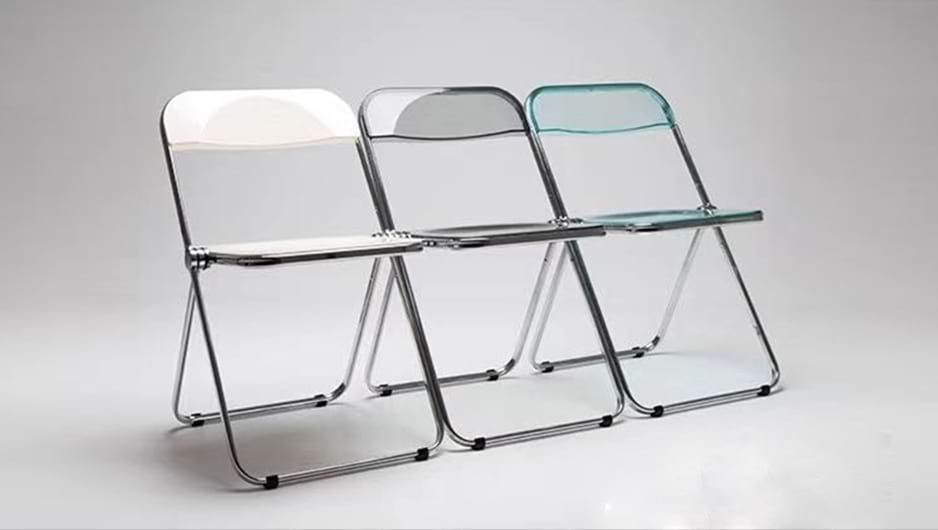

Let us consider a practical application example. Designing a deep-cavity Plastic Chair Mold requires significantly higher draft on both the core and cavity. Without it, you create vacuum locks. The massive surface area will fail to release cleanly. Proper taper ensures air can enter the gap, breaking the vacuum instantly upon ejection.
Textured surfaces complicate ejection physics. You must compensate for the micro-undercuts created by the texture pattern. The golden rule requires adding 1.5° per 0.001" (0.025mm) of texture depth. Standard Mold-Tech texture requirements emphasize this precise formula.
Textures hide cosmetic flaws and improve grip. However, they grab the steel tightly. Aggressive textures mimic heavy leather or stipple patterns. They bite deeply into the plastic. Therefore, aggressive textures demand highly aggressive draft to prevent the plastic from dragging and tearing the finish. If you ignore this rule, the texture will look damaged and inconsistent across the part.
Polymers behave differently as they cool. You cannot apply universal tapers without evaluating the physical realities of your chosen resin. Material properties heavily dictate how aggressively a part will cling to the steel core.
Best Practice: Cross-reference your resin data sheet for shrinkage values before locking in your CAD tapers.
Common Mistake: Using a taper design optimized for ABS on a new mold intended for Glass-Filled Nylon.
High-shrink materials grip the core much tighter than low-shrink materials. Volumetric shrinkage defines how much the plastic contracts as it cools from a liquid to a solid. Resins like Nylon or POM (Acetal) experience significant shrinkage. As they cool, they clamp onto internal features with immense force. Acetal literally squeezes the core pin. If you only provide 1 degree of taper, the ejector pins will punch right through the part. You must design a higher taper for internal features when molding these specific resins.
The stiffness of the cured plastic also alters your taper strategy. We classify resins into two broad categories regarding rigidity:
Many structural parts utilize glass-filled resins. Glass fibers increase structural integrity but heavily increase friction. They act like sandpaper against the mold cavity during ejection. Glass-filled resins increase tool wear rapidly. This reality necessitates slightly higher draft angles to preserve the mold finish over thousands of cycles.
Engineers finalizing complex CAD models face unique challenges. Simple vertical walls are easy to taper. Internal structural features require precise geometric balancing. You must secure a verified Injection Molding Draft Angle for every complex face.
Structural ribs present a common DFM trap. Draft must be applied carefully to avoid making the base of the rib too thick. A thick base creates a massive concentration of thermal mass. As this mass cools, it causes unsightly sink marks on the opposite cosmetic face. Bosses serve as mounting points for screws. They require internal and external taper. If you make the boss base too thick, a void may form inside the plastic. To prevent this, limit rib base thickness to 60% of the nominal wall thickness. You might need to compromise on rib height to maintain structural integrity.
Undercuts prevent straight-pull ejection. Complex parts often feature snap fits or side holes. You must design side-actions or lifters to release these features. Taper must be integrated directly into the side-actions. You must design this taper without creating parting line mismatches. A poor transition between the side-action and the main cavity leaves flash. It also creates a noticeable witness line on the final part.
Consumer products demand pristine aesthetics. Consider a practical application example. Designing a Home Appliance Injection Mold for a premium vacuum cleaner housing requires meticulous planning. External A-class surfaces must be entirely free of drag marks. You cannot hide defects on these surfaces. High-gloss finishes grab the steel differently than matte finishes. This scenario requires a precise balance. You must combine heavy SPI-A level polishing with optimized, generous draft to ensure flawless visual quality.
Buyers and engineers often experience molding issues during initial sampling. You might be reviewing confusing DFM feedback from a supplier right now. Identifying the root cause of an ejection failure allows you to negotiate effective design changes.
Best Practice: Retain the very first "short shots" and defective samples during tooling trials to diagnose ejection friction accurately.
You can diagnose tooling geometry issues by examining the defective parts. Look closely for these three primary failure modes:
If you spot these defects, you must negotiate DFM changes with your manufacturing partner. Start by requesting a comprehensive mold flow analysis. This simulation visualizes the cooling and shrinkage process. It highlights areas of high ejection friction. You may need to adjust the texture depth on problematic faces. Alternatively, you can alter the parting line location. Moving the parting line often allows for better taper distribution across the critical features.
Optimizing your tool design is a delicate balance. It requires harmonizing part aesthetics, material physics, and tooling mechanics. You cannot isolate one variable without affecting the overall outcome. A perfectly calculated taper ensures your manufacturing process runs smoothly from day one.
You must add proper taper early in the CAD stage. Doing this prevents costly tool modifications and delayed launches later. Trying to fix ejection issues after cutting steel drains your budget and wastes valuable time. Proactive engineering always wins.
We encourage you to submit your 3D CAD files for a comprehensive DFM review. Our experts will validate your exact geometry and material choices. This proactive step guarantees a clean ejection phase and highly scalable production.
A: The absolute minimum is generally 0.5 degrees. Engineers reserve this ultra-low taper exclusively for very short, untextured vertical walls where design space is severely restricted. However, the standard industry baseline remains 1.5 to 2.0 degrees for most conventional parts to ensure a clean release.
A: It is theoretically possible for very shallow parts using specific self-lubricating materials and aggressive mold release agents. However, industry experts highly discourage zero-draft designs. It introduces extreme risks of permanent part damage, severe surface scuffing, and accelerated tool wear.
A: The taper must always angle away from the parting line. This geometry ensures the molded part separates cleanly as the tool opens. Changing the angle can physically shift where the two halves of the mold meet, potentially moving the witness line to a different cosmetic face.
A: Yes, it often changes. Plastic shrinks away from the outer cavity and shrinks tightly onto the inner core as it cools. Because of this clamping effect, core features often require slightly more aggressive taper to ensure a clean release without pin push marks.
