How to Design Ribs and Bosses Without Sink Marks

Sink marks on exterior surfaces compromise both the cosmetic acceptance and structural integrity of injection-molded parts. They immediately signal poor manufacturing quality to end-users. You cannot simply ignore these visual defects in a highly competitive consumer market.

The primary culprit is disproportionate localized mass. This phenomenon typically happens where internal features like ribs and bosses meet the nominal wall. Solving this issue requires strict adherence to Design for Manufacturability (DFM) guidelines long before tooling begins. Post-mold process adjustments, like increasing hold pressure, remain unreliable bandages for fundamental geometric flaws.

This article provides definitive engineering ratios to help you successfully integrate complex structural features. We will outline proven strategies to eliminate sink marks completely at the CAD stage. Following these precise guidelines reduces tooling iterations, improves final part quality, and accelerates your overall time-to-market.

Key Takeaways

• Rule of Proportions: Keep rib thickness at the base between 50% and 70% of the nominal wall thickness to prevent delayed cooling and localized shrinkage.
• Boss Isolation: Never attach solid bosses directly to cosmetic walls; use coring and supporting gussets to maintain uniform wall thickness.
• Holistic Evaluation: Design is only half the equation; successful execution requires a manufacturer capable of advanced Plastic Injection Mold Design (strategic gate placement and conformal cooling).
• Application Specifics: Cosmetic requirements dictate stricter parameters—what is acceptable in an internal structural component will fail quality control in a highly visible Commodity Plastic Mold or exterior Automotive Injection Mold.

1. The Physics of Sink Marks at Feature Intersections

Understanding volumetric shrinkage dynamics is crucial for any mechanical engineer. When molten plastic enters a mold cavity, it immediately begins cooling from the outside in. The outer skin solidifies quickly against the cold steel tool. The molten core takes much longer to freeze. Thicker sections retain heat longer. They shrink inward as they finally cool down. This internal thermal contraction pulls the already-cooled exterior surface inward, creating a visible depression known as a sink mark.

Engineers frequently face the mass accumulation problem during part design. You might design a perfectly standard nominal wall. You might add a seemingly thin rib for structural strength. However, where these two features intersect, you inadvertently create a hidden thick cross-section. We evaluate this hidden mass using the inscribed circle method. If you draw a circle inside the CAD intersection, its diameter is often significantly larger than the nominal wall thickness. This hidden mass accumulation acts as a thermal reservoir and becomes the direct cause of localized shrinkage.

We must also address the severe cost of remediation. Fixing sink marks after cutting steel presents massive logistical headaches. You must perform expensive mold modifications. Toolmakers usually need to use EDM (Electrical Discharge Machining) or weld the tool to thin out the rib cavities. Alternatively, molders try to fix the defect using aggressive processing parameters. They bump up the pack and hold pressures. These cycle-time-killing adjustments waste energy and introduce dangerous internal stresses into the part. We must fix the geometry in CAD first to avoid these penalties.

2. Engineering Parameters for Rib Design

You must establish strict adherence to the base thickness ratio rule. Your rib thickness at the base should measure between 50% and 70% of the nominal wall thickness. We mandate 50% for high-shrink semi-crystalline resins like nylon or polypropylene. You can safely increase the ratio up to 70% for low-shrink amorphous resins like polycarbonate or ABS. Exceeding these limits mathematically invites surface defects.

Draft angles and height limitations require careful balancing. We recommend 0.5° to 1.5° of draft per side for proper ejection from the mold. You must watch your maximum rib height carefully. Taller ribs naturally require more draft to release from the steel cavity. This added draft inadvertently thickens the base of the rib. A thicker base violates the 50-70% rule and immediately causes sink marks. Keep your overall rib height below three times the nominal wall thickness to avoid this geometric trap.

You must specify accurate fillets and radii. You need base radii measuring 0.25 to 0.5 times the nominal wall thickness. Sharp intersecting corners cause severe stress concentrations. They lead to premature part failure under mechanical load. However, overly large radii add unnecessary mass to the intersection. This extra material triggers the exact thermal sink marks you want to avoid.

Spacing rules dictate tool longevity and part aesthetics. You must space ribs at least two times the nominal wall thickness apart. Tightly packed ribs prevent the mold steel from cooling adequately. Overheated steel exacerbates sink marks because the local plastic cannot freeze fast enough. Proper spacing ensures even heat dissipation across the entire tool geometry.

3. Designing Bosses for Fasteners Without Surface Defects

Thick, solid cylinders guarantee sink marks on the opposite show-surface. They represent massive pools of molten plastic. They cool much slower than the surrounding uniform walls. This delayed cooling pulls the cosmetic surface inward, ruining the product's appearance. You must actively avoid designing solid bosses under any circumstances.

Proper coring solves this fundamental problem. You must core out the center of every boss geometry. Ensure the boss wall thickness stays strictly under 60% of the nominal part wall. Carefully calculate the inner diameter (ID) and outer diameter (OD). This optimal ratio maintains essential structural strength for threaded fasteners while actively preventing thermal sinks.

Implementing stand-offs and proper wall attachment is highly critical. Never merge a boss directly into a main exterior wall. This creates a massive material intersection that will inevitably shrink. Instead, follow these numbered steps for proper boss integration:

1. Move the boss away from the nominal wall to establish a minimum clearance of 3mm.
2. Core out the center to adhere to the 60% wall thickness limitation.
3. Tie the isolated boss back to the main wall using thin connecting ribs, also known as gussets.
4. Ensure these connecting gussets also follow the 50% to 70% thickness rule to prevent secondary sink marks.

This approach isolates the heavy mass of the boss from your critical cosmetic surfaces. It preserves structural integrity while protecting visual quality.

4. Adapting DFM Across Different Industry Requirements

Engineers constantly balance the need for stiffness with the requirement for flawless Class-A surfaces. Thicker ribs provide superior rigidity. Unfortunately, they also ruin visual perfection. You must find the optimal middle ground based on the specific end-use application of the product.

Automotive standards demand rigorous engineering. A well-designed Automotive Injection Mold must account for extreme structural loads, high impact forces, and constant vibration resistance. Automotive components frequently utilize glass-filled resins. Glass fibers restrict shrinkage along the direction of flow. This drastically alters volumetric shrinkage rates. You must modify your standard rib ratios to accommodate these advanced composite materials, often dropping the base thickness ratio down to 40% for highly filled polymers.

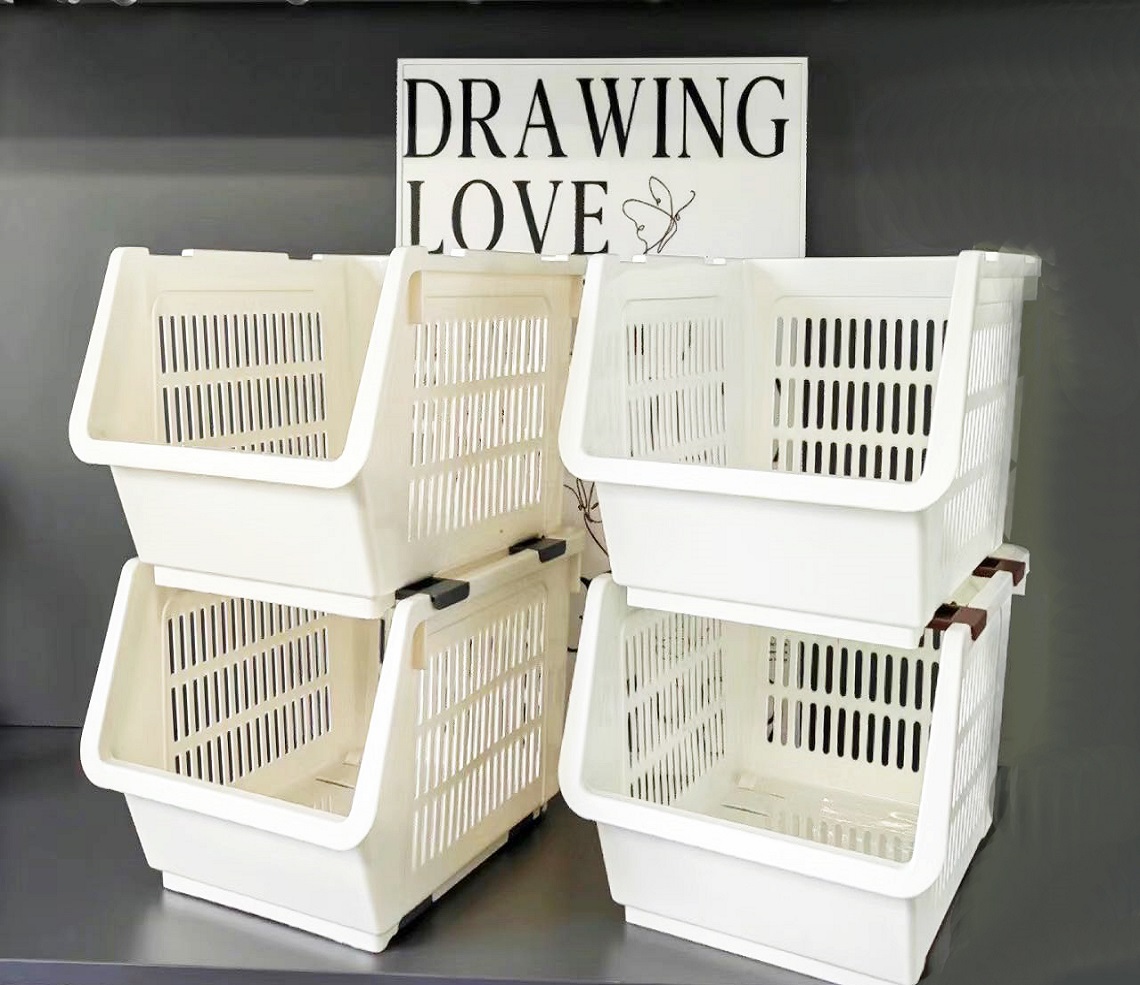

Consumer goods demand absolute aesthetic perfection. A high-quality Commodity Plastic Mold produces brilliant, high-gloss finishes. On a glossy exterior surface, even micro-sinks measuring less than 0.01mm in depth become highly visible. Consumers perceive these tiny flaws as severe quality defects. Strict adherence to mass reduction is absolutely non-negotiable here. Designers often utilize corrugated surfaces instead of traditional ribs to achieve stiffness without risking sink marks.

5. The Role of Plastic Injection Mold Design in Defect Prevention

Perfect CAD geometry can still experience sinking if the tooling architecture is deeply flawed. Defect prevention requires a highly holistic approach. It demands a heavily optimized Plastic Injection Mold Design. Tooling engineers must complement your part design with intelligent steel construction.

Cooling channel proximity plays a massive role in part quality. You must direct circulating coolant to areas housing heavy structural features. Toolmakers frequently use baffles and bubblers inside steel boss pins. This extracts heat directly from the deep core of the boss. Faster localized cooling stops the molten plastic from pulling away from the cavity wall during the freezing phase.

Gate location and sizing determine the success of the packing phase. Position your gates strategically. You want the cavity to pack out effectively before the gate freezes off. Always direct the flow from thick sections to thin sections. If plastic flows from thin to thick, the thin area freezes prematurely. You lose the ability to pack the thick area, causing immediate sink marks.

We must also acknowledge processing realities. Relying on high pack-and-hold pressures to force out sink marks introduces severe molded-in stress. These extreme pressures pack the polymer molecules unnaturally tight near the gate. Over time, this stress relaxes. The part will inevitably warp, crack, or fail entirely in the field. Intelligent tooling architecture eliminates the need for abusive processing parameters.

6. Evaluating an Injection Molding Partner for Complex Geometry

You need a manufacturer with proactive DFM capabilities. A trustworthy molding partner provides detailed Moldflow analysis upfront. They pinpoint high-risk areas before quoting final tool costs. They look closely at your Ribs and Bosses Injection Molding strategy early in the development game. They flag mass accumulation zones before steel is ever cut.

Tooling transparency separates excellent partners from average vendors. Look for companies who openly discuss their cooling line strategy and mold steel selection during the early evaluation phase. They should clearly explain how their specific tool design prevents your complex parts from sinking.

You must implement strong risk mitigation strategies when selecting a supplier. Consider evaluating partners based on these criteria:

• Request detailed case studies demonstrating success with highly cosmetic, structurally complex parts.
• Verify their hands-on experience processing the specific resin grade you selected for your project.
• Review their standard quality control procedures for measuring and rejecting micro-sinks on glossy surfaces.
• Confirm their in-house capability to design and manufacture conformal cooling channels using 3D metal printing.

Encourage your engineering team to submit CAD files for a comprehensive, no-obligation manufacturability review. Finding geometrical errors now saves weeks of frustrating debugging later in the production cycle.

Conclusion

Designing structural features without surface defects is an exercise in strict geometric discipline. You must aggressively manage localized mass reduction across your entire CAD model. Every intersection requires careful scrutiny to prevent thermal accumulation. Adhering to the 50% to 70% rule ensures uniform cooling and maintains surface integrity.

Never compromise the nominal wall thickness ratio to achieve a perceived gain in mechanical strength. Adding more plastic often weakens the part by introducing internal voids and external sinks. Instead, use alternative geometries creatively. Consider employing corrugations, multiple shorter ribs, or advanced composite materials to achieve the required stiffness.

Do not leave your final surface finish to chance. Engage skilled engineering support for a thorough DFM review of your current models. This proactive step guarantees defect-free production, lowers long-term scrap rates, and ultimately protects your brand's reputation in the marketplace.

FAQ

Q: Can you fix a sink mark by increasing the injection molding hold pressure?

A: Only to a minor degree. Pushing more material into the cavity can superficially mask small sinks. However, excessive pressure creates massive internal stress and subsequent part warp. The only permanent, reliable fix is geometric modification. You must reduce the wall thickness at the feature base.

Q: What is the ideal draft angle for ribs to prevent sink marks?

A: We recommend a minimum of 0.5° per side for clean ejection. However, your calculation must ensure that the applied draft does not cause the rib base to exceed 60% of the nominal wall thickness. Taller ribs require careful balancing to avoid bottom-heavy geometry.

Q: Does the type of plastic material affect sink marks on bosses?

A: Yes. Semi-crystalline materials like PP, POM, and PA have much higher volumetric shrinkage rates than amorphous materials like ABS and PC. Therefore, semi-crystalline resins require far stricter adherence to the 50% wall thickness rule to prevent visible surface defects.
