Designing complex plastic parts frequently hits a rigid physical roadblock. When part features prevent simple straight-line ejection, you must rely on specialized tooling mechanisms to get the job done. Injection Molding Undercuts pose a significant manufacturing challenge every design engineer must face. Dealing with these trapped areas forces a serious compromise between upfront mold costs, per-part cycle times, and long-term maintenance burdens.
Making the wrong tooling choice here can easily derail your project budget. It might even cripple your daily production capacity. This article sets out to solve that specific problem. We will provide a comprehensive technical and commercial evaluation framework tailored for real-world manufacturing. Engineers and procurement teams will learn how to choose the most cost-effective undercut strategy for their specific production volume. By evaluating slides, lifters, and inserts, you can optimize your next tooling investment and avoid costly production delays.
Understanding the true cost of tooling complexity is crucial for project success. When you add undercut mechanisms to a mold, you drastically change its engineering footprint. The tool must grow larger to accommodate mechanical components. This increases the overall mold base size. Consequently, it requires more raw tool steel, which drives up material expenses.
Furthermore, cutting these complex pockets requires extended machining time. Toolmakers must use precise CNC milling and EDM processes. They also need tighter tolerances to ensure moving metal parts seal perfectly against each other. If they fail, pressurized plastic will leak through the gaps.
Your tooling strategy ultimately determines your unit economics. You face a direct trade-off between upfront spending and long-term piece price.
Mold wear is an unavoidable reality in manufacturing. Adding moving parts increases your maintenance burden. Moving steel rubs against stationary steel during every single shot. Over millions of cycles, friction degrades the surfaces. This wear increases the risk of flash formation. Parting lines may begin to mismatch. Eventually, mechanical failure can occur if preventative maintenance is ignored. You must regularly grease the components and replace worn wear plates to keep the tool running smoothly.
Side-actions, commonly known as slides, handle complex external geometry. They represent the industry standard for releasing exterior undercuts automatically.
Slides operate using mechanical leverage during the mold opening sequence. Angled cam pins extend from the stationary half of the tool. They engage with angled holes inside the slider block on the moving half. As the mold opens, the pins force the slider to move horizontally outward. This pulls the molding surface away from the trapped part feature. Once the slider clears the undercut, the ejector system pushes the part off the core. When closing, the pin pulls the slide back. Heavy steel locking heels then clamp the slider shut to withstand immense injection pressure.

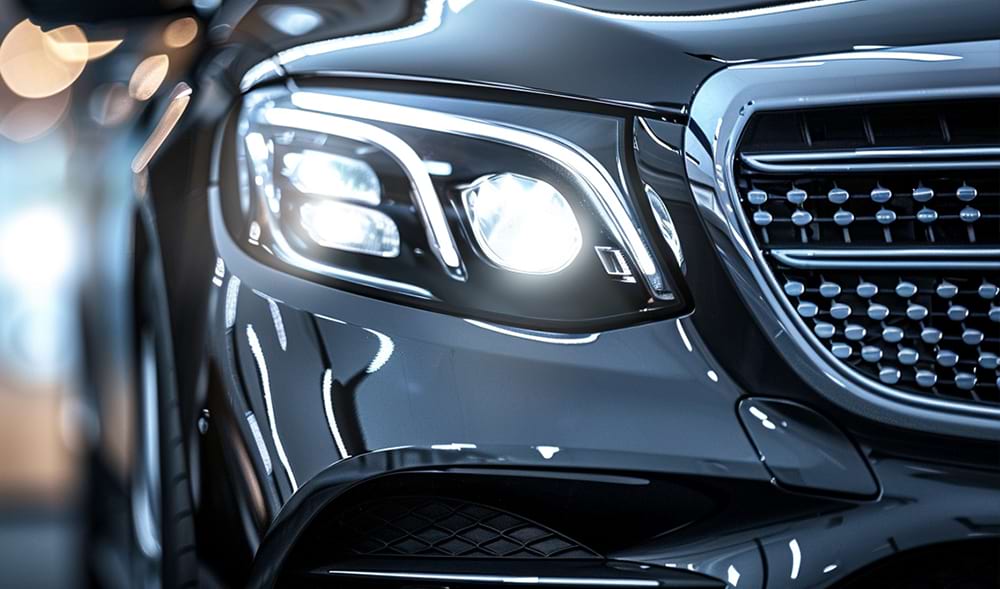

You will typically use slides for external holes, louvers, and complex side geometries. Designers frequently specify them in large-scale Automotive Injection Mold projects. Parts like bumper fascias, lighting housings, and exterior mirror covers heavily rely on side-actions to achieve their final shapes.
While slides handle the outside, lifters excel at releasing internal trapped geometry. They provide an elegant, automated solution for hard-to-reach interior undercuts.
A lifter functions as part of the tool's ejection system. It consists of a formed steel head attached to an angled rod. As the press opens, the ejector plate pushes forward. Because the lifter rod sits at an angle, it moves upward and laterally at the same time. This inward shift pulls the lifter head away from the internal undercut. Once the lifter clears the feature, the part is free to fall.
Lifters easily form internal clips, snap-fits, and O-ring grooves. They are highly relevant for intricate Motorcycle Parts Injection Mold designs. Components like internal fairing mounts, battery box clips, and hidden locking tabs require lifters for automated ejection.
When high upfront costs cannot be justified, manual solutions become highly attractive. Hand-loaded inserts bypass complex automation entirely.
This process relies on manual placement of loose metal cores, known as handloads. An operator places these pieces into the mold cavity before each shot. The press closes and plastic flows around the insert. When the press opens, the part ejects alongside the metal core. The operator then manually removes the metal block from the finished plastic part on a workbench. They clean it, place it back into the mold, and start the next cycle.
This manual workflow closely relates to traditional Insert Molding techniques. For example, designers often place a threaded brass insert into the tool. The plastic solidifies around the brass. This permanently embeds the threads. Doing so can entirely eliminate the need for complex molded-in plastic threads. Since internal plastic threads act as severe undercuts requiring expensive unscrewing mechanisms, using metal inserts offers a practical shortcut.
Selecting the right approach involves logic, geometry, and math. Use this structured decision framework to determine the best tooling mechanism.
Your first step should always be attempted elimination. Review the part geometry carefully. Can you use pass-through cores? This technique creates a hole beneath a snap-fit, allowing the bottom mold half to form the underside of the hook. Consider parting line adjustments to shift the seam and expose the undercut. Explore mating-part redesigns to snap two simpler pieces together instead.
If the undercut must stay, perform a break-even calculation. Compare the ongoing labor cost of handloads against the amortized tooling cost of slides or lifters. Calculate the projected product life cycle. If automation saves $0.50 per part in labor, a $5,000 slide pays for itself after exactly 10,000 parts.
| Undercut Strategy | Upfront Tooling Cost | Per-Part Piece Price | Cycle Time Impact | Ideal Production Volume |
|---|---|---|---|---|
| Automated Slides | High ($$$) | Low ($) | Minimal (Fast) | High Volume (>10k) |
| Automated Lifters | Moderate ($$) | Low ($) | Minimal (Fast) | High Volume (>10k) |
| Hand-Loaded Inserts | Low ($) | High ($$$) | High (+15-30 seconds) | Low Volume (<1k) |
After checking the math, map the geometry to the correct hardware.
Evaluating a Plastic Injection Mould builder requires asking tough questions. You must question your injection molding partners on their maintenance protocols. Complex moving mold components require strict care. Ask them how they manage slide wear plates. Inquire about their lifter galling prevention tactics. Verify their cooling channel designs around moving components. A reliable vendor will have documented preventative maintenance schedules to protect your investment.
There is no single universally "best" mechanism for manufacturing undercuts. The right choice is a strict mathematical calculation. You must weigh expected part volume, hourly labor rates, and physical geometric necessity. Automated slides handle massive runs of external details, while lifters tackle internal snaps. Hand-loaded inserts provide a cheap entry point but cripple your daily output speed.
Your next step is simple. Encourage your design engineers to bring parts to a trusted tooling partner early. Seeking Design for Manufacturability (DFM) feedback before freezing the CAD allows you to tweak features, simplify the mold, and finalize the most financially positive tooling structure possible.
A: Yes, designers frequently avoid them through clever geometry adjustments. You can utilize pass-through coring, which creates a small window beneath a snap-fit to allow straight-pull tooling. You can also move the parting line to intersect the problematic feature. Alternatively, consider splitting a complex part into two simpler parts that snap or weld together later.
A: Adding automated mechanisms significantly increases capital expenses. You should expect a realistic premium of 15% to 40% over the cost of a standard straight-pull mold. Each side-action slide usually adds thousands of dollars due to increased mold base size, complex machining, and the required tight-tolerance fitting.
A: Yes. Relying on manual operator loading extends the open-press time during every cycle. This adds anywhere from 10 to 30 seconds per shot. It also demands strict thermal management. The mold cools rapidly while sitting open, which can cause dimensional variations in the resulting plastic parts.
A: Flash occurs when pressurized plastic escapes the cavity. On undercuts, it is primarily caused by mechanical wear. Over millions of cycles, the friction on slide faces or lifter seals degrades the tool steel. This wear creates microscopic gaps. High-pressure molten plastic pushes into these gaps, resulting in unwanted plastic flash.
