SPI vs VDI Surface Finishes for Molded Parts

Specifying the wrong mold finish can destroy an otherwise flawless engineering project. Countless product launches stall when manufactured parts fail visual inspections. You might face severe delays, costly tool rework, and blown production timelines when this happens. Aesthetic rejections and part sticking directly result from incompatible surface finish choices. The industry currently lacks a universal baseline. North American manufacturers usually default to SPI guidelines. Conversely, European and Asian markets often utilize the VDI 3400 scale.

We will break down exactly how to evaluate these two distinct systems. You will learn a rigid, technical framework to choose the correct finish based on tooling cost, material selection, and required draft angles. Read on to confidently specify the right texture for your next plastic molding project. This guide eliminates the guesswork in mold texturing. You can avoid common pitfalls and streamline your production cycle today.

Key Takeaways

• Standard Origins: SPI focuses on secondary manual polishing (graded A to D), whereas VDI 3400 dictates finishes native to the Electrical Discharge Machining (EDM) process.
• Cost Implications: High-grade SPI finishes (A-1, A-2) significantly increase tooling costs due to manual diamond buffing. VDI finishes are generally more cost-effective as they are machined directly into the steel.
• Draft Angle Dependency: Both standards require modified draft angles; heavily textured VDI finishes or SPI D-grades require an additional 1° to 1.5° of draft per 0.025mm of depth to prevent drag marks.
• Application Match: Automotive interior parts favor VDI for uniform, scratch-resistant textures, while optical components require SPI A-grade finishes.

Defining the Standards: SPI vs VDI

Start by defining the acronyms and understanding how engineers apply them in real-world scenarios. We must examine SPI vs VDI Surface Finishes to understand their core mechanical differences. The Society of Plastics Industry (SPI) standard focuses heavily on manual polishing techniques. Toolmakers achieve these finishes using hand tools, abrasive stones, and diamond paste. You will find four main categories within the SPI system. Each category contains three sub-grades, numbered 1 through 3.

• Grade A (A-1, A-2, A-3): These represent high glossy finishes. Toolmakers achieve them via rigorous diamond buffing. They require progressive polishing steps, starting from coarse grits to microscopic diamond pastes.
• Grade B (B-1, B-2, B-3): These provide semi-gloss surfaces. Technicians use fine grit paper to create them. They remove distinct tool marks but do not offer mirror-like reflectivity.
• Grade C (C-1, C-2, C-3): These deliver matte finishes. Stone polishing techniques yield this look. They are excellent for hiding minor machining imperfections.
• Grade D (D-1, D-2, D-3): These are textured finishes. Shops achieve them via dry blasting using sand or glass beads. The operator sprays abrasive media directly onto the mold steel.

Conversely, the Verein Deutscher Ingenieure (VDI 3400) standard operates differently. It primarily covers textures achieved via Electrical Discharge Machining (EDM). This standard completely removes manual hand polishing from the equation. The scale ranges from VDI 12 to VDI 45. VDI 12 represents a smooth, matte finish. VDI 45 represents a very heavy, aggressive texture.

VDI finishes remain highly repeatable across production runs. The final surface texture ties directly to machine parameters rather than a toolmaker's individual polishing technique. The EDM electrode sparks against the steel, leaving microscopic craters. The size and depth of these craters determine the specific VDI number. Furthermore, VDI grades correlate directly to standard surface roughness (Ra) values. This makes objective measurement much easier for quality control teams.

Core Evaluation Criteria for a Plastic Injection Mould

Choosing the right standard involves several operational variables. When evaluating a Plastic Injection Mould, you must heavily assess predictability and lead times. VDI is machine-controlled. It offers strict consistency across multiple cavities. You can program an EDM machine to spark a cavity to a precise VDI 30 finish. The machine will replicate this perfectly across all cavities in a family mold. SPI relies heavily on operator skill. Cavity-to-cavity consistency is much harder to guarantee on complex geometries. A technician might polish one cavity slightly more aggressively than another, leading to slight visual mismatches on the final molded parts.

Tooling and lead time considerations also dictate your choice. SPI A and B grades require harder mold steels to hold the polish effectively. You often need premium tool steels like H13 or Stavax. This dramatically increases raw material costs upfront. Manual polishing for high-level SPI finishes also adds days or even weeks to mold completion times. Polishing is sequential. You cannot skip steps. VDI finishes are machined directly into the steel during the EDM phase. You save significant manual labor time and compress your tooling schedule.

Geometry alteration risks present another critical factor during mold manufacturing. Excessive manual polishing can accidentally round off sharp corners. An operator aggressively buffing an SPI A-2 finish might inadvertently alter critical micro-dimensions on the tool. The EDM process used for VDI maintains strict geometric integrity. The electrode burns the texture into the steel uniformly without relying on physical friction.

Best Practices and Common Mistakes in Tooling Evaluation

Best Practice: Always specify VDI finishes on parts requiring sharp internal corners or precise interlocking features to preserve micro-geometries.

Common Mistake: Specifying an SPI A-1 finish on a part featuring complex micro-ribs. The manual polishing process will almost certainly destroy the crisp, intended edges of the ribs, leading to part failure.

Aligning Finishes to Industry Applications

Engineers must match the surface standard to the end-use environment. Let us look at specific industry applications to see where each standard excels.

Automotive Injection Mold Requirements

Automotive injection mold requirements demand precise aesthetic control and high durability. When designing interior components like dashboards, center consoles, and trims, engineers typically demand VDI 30 through VDI 36. These heavy EDM textures achieve anti-glare, scratch-resistant surfaces. They often mimic leather-like textures perfectly, enhancing the perceived value of the vehicle interior. For exterior components like light housings and lenses, the requirements shift completely. You must specify SPI A-1 or A-2 for an Automotive Injection Mold producing optical clarity. These diamond-buffed finishes allow maximum light transmission and eliminate visual distortion.

Consumer Goods & Furniture

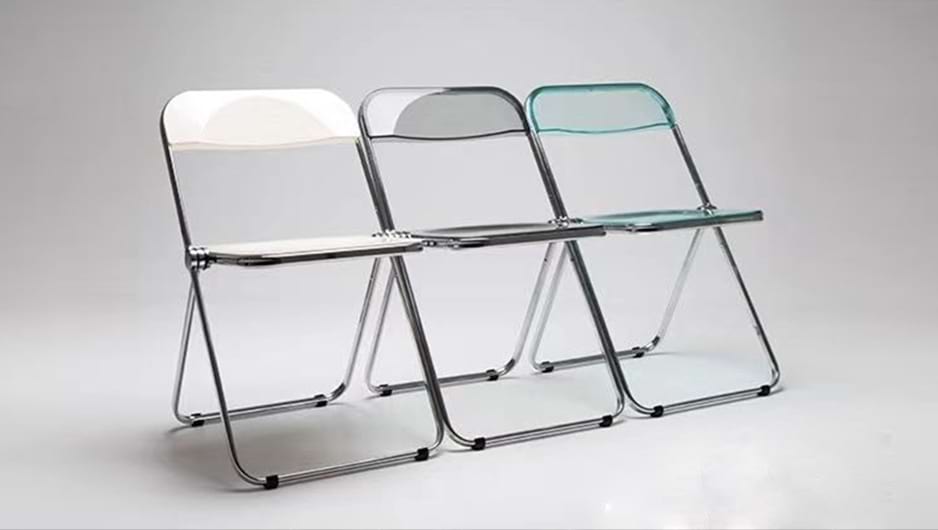

Consumer goods and furniture also dictate specific surface standards. Large structural parts often utilize SPI C or D grades. Alternatively, you might see VDI 27 through VDI 33 deployed frequently. For example, a Plastic Chair Mold requires these aggressive textures to function properly in the market. These rougher grades effectively mask flow marks, sink marks, and gating imperfections across massive surface areas. They also provide essential end-user grip and long-term scratch durability. A highly glossy finish on a plastic chair would highlight every single manufacturing defect and scratch easily during daily use.

Medical & Cleanroom Devices

Medical and cleanroom devices operate under strict regulatory guidelines. Engineers mandate highly polished SPI A-grades for these critical applications. Smooth, non-porous surfaces prevent bacterial accumulation and facilitate easy sterilization. They also allow for the visual inspection of fluids passing through the device. A textured VDI surface might trap microscopic contaminants in a clinical setting, leading to severe regulatory failures.

Design Constraints: Draft Angles and Polymer Selection

Surface finishes heavily dictate your physical part geometry. The draft angle rule remains absolute in plastic injection molding. Draft allows the part to eject smoothly without grinding against the mold walls. If you specify a smooth finish like SPI A/B or VDI 12-18, you need a minimum of 0.5° to 1° of draft. Textured finishes demand much more clearance. For aggressive textures like SPI C/D or VDI 24-45, you must add 1° of draft for every 0.02mm (0.001") of texture depth.

Failure to specify the correct draft results in immediate manufacturing defects. You will see severe scuffing and drag marks on the side walls. The ejector pins might even push straight through the part during ejection because the friction holds the plastic too tightly against the textured steel.

The following chart illustrates standard draft angle recommendations based on surface finish depth.

Material shrinkage and viscosity also heavily influence your finish choice. Crystalline plastics behave differently than amorphous plastics inside the mold cavity. Materials like POM, PA, and PP shrink significantly during the cooling phase. They pull away from the cavity walls and release easily from highly polished SPI surfaces. Amorphous plastics like PC, ABS, and PMMA are naturally "sticky". They undergo less volumetric shrinkage and are prone to vacuum locks on high-gloss (SPI A) molds. The plastic creates a literal suction effect against the perfectly smooth steel.

These sticky polymers often perform better with a micro-texture applied to the mold. Using an SPI B/C or VDI 18-24 finish allows microscopic pockets of air to break the vacuum seal during ejection. This ensures smooth part removal and prevents ejector pin stress marks on the finished product.

Inspection, Verification, and Supply Chain Realities

Quality control teams face distinct challenges when verifying surface finishes on the factory floor. We must address the subjectivity trap inherent in SPI standards. Visual inspection is often highly subjective. One inspector might approve an SPI B-2 finish, while another rejects it based on lighting conditions or personal judgment. You must establish physical reference plaques during the Quality Control (QC) process. Both the manufacturing vendor and the engineering client must sign off on these physical plaques before mass production begins. This simple step avoids costly vendor disputes later.

VDI offers far better measurability. VDI can be objectively verified using a profilometer. This device drags a microscopic stylus across the mold steel. It measures the exact Ra (Roughness Average) value in micrometers. The machine provides a hard data point. There is zero room for debate or subjective interpretation.

Global sourcing implications complicate this further. Many companies transfer molds between Asia, Europe, and North America during their operational lifespan. You must proactively bridge the gap between SPI and VDI expectations. Always mandate a strict Ra translation chart in the official PO (Purchase Order). This ensures a tool shop in Germany understands the exact roughness equivalent of an SPI B-1 finish specified by an industrial designer in Chicago.

Conclusion

Choosing the correct mold finish requires balancing aesthetics, material science, and manufacturing realities. You must navigate the decision matrix carefully. Choose VDI standards when you need repeatable, machine-generated textures and strict cost control over the tooling phase. Choose SPI standards when your project demands high-gloss, optical clarity, or premium cosmetic requirements that only manual diamond buffing can achieve.

Your immediate next steps involve rigorous design verification. Advise your engineering teams to audit all 3D CAD models for adequate draft angles before locking in a surface finish specification. Cross-reference your chosen polymer's shrinkage rate against the intended texture depth. Finally, always provide physical reference plaques or strict Ra values to your tooling partner to ensure absolute alignment before cutting steel.

FAQ

Q: Is there a direct conversion between SPI and VDI 3400?

A: There is no 1:1 conversion because SPI includes manual blasting and polishing, while VDI is strictly EDM-based. The processes create different microscopic topographies. However, rough approximations exist based on Ra values. For example, VDI 12 roughly aligns with the Ra value of an SPI C-1 finish. Always use a profilometer for exact translations.

Q: Does a higher SPI or VDI finish increase piece-part cost?

A: Tooling cost increases significantly due to manual labor or prolonged EDM time, but the piece-part price typically remains unchanged. Piece-part costs only increase if the specified finish mandates a slower injection cycle time or requires frequent mold cleaning, such as managing aggressive outgassing on high-gloss SPI molds.

Q: Which standard is better for hiding sink marks?

A: Heavy textures diffuse light effectively, breaking up reflections that highlight surface depressions. VDI 36-45 or SPI D-3 grades are the absolute best choices for masking sink marks over thick ribs or heavy wall sections. These deep textures camouflage flow lines and minor gating imperfections perfectly.
